USL1
LED Linear Strip - Selectable CCT & Wattage

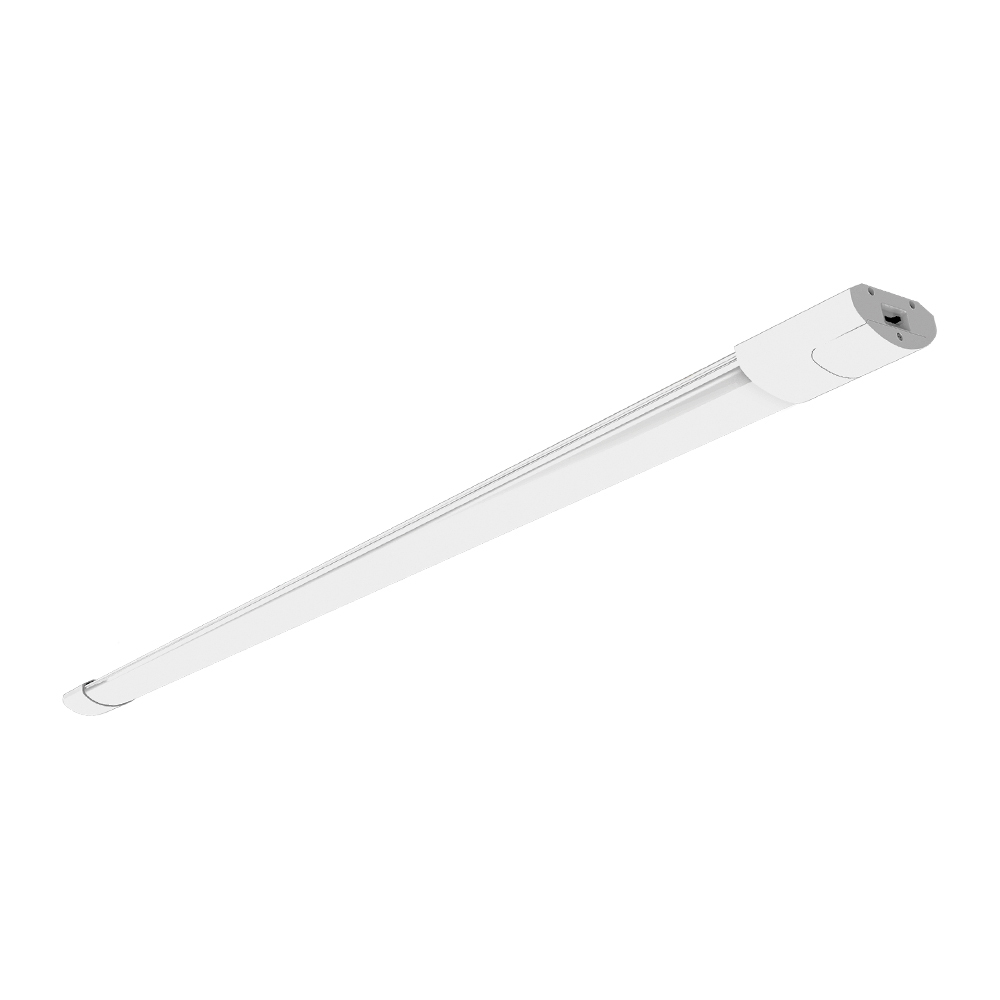

The USL1 LED linear strip light is a modern lighting solution that offers exceptional performance and ease of use. This versatile strip features selectable CCT and wattage switches, allowing you to choose the perfect lighting for any setting. Moreover, it can be specified with motion-sensing capabilities to support occupant well-being and optimize energy usage. Designed to deliver brilliant illumination and clarity, the USL1 is built to be installed easily in any location, so your new lighting is up and running in no time.
Product Specs
Product Details
Key Features
-
The compact linear design makes it easy to install virtually anywhere you need lighting.
-
Choose the perfect CCT and wattage that suits the setting with integrated switches.
-

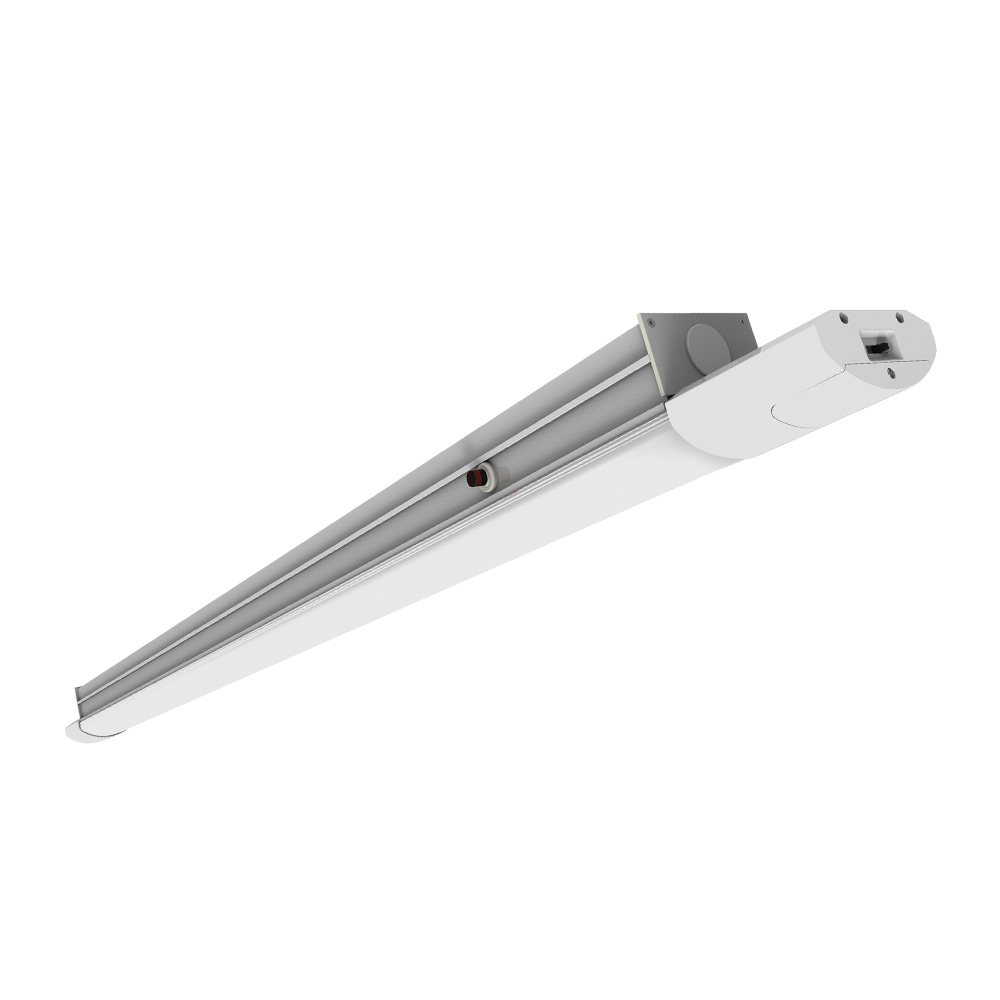

Motion sensing capabilities allow it to turn on and off as needed, providing convenient and energy-efficient lighting.
-
Emergency back-up option available.
Construction
-
Housing is constructed from aluminum in a standard white finish that optimizes thermal management for long life.
-
Frosted acrylic diffuser designed for uniform light distribution, superior glare control, and improved aesthetics.
-
End caps are high-impact injection molded PMMA material in a standard white finish.
Electrical
-
120-277VAC input. 50/60Hz input.
-
0-10V dimming standard.
-
Power factor: >0.98 and THD <20%.
-
Operating temperature: -30°C to 40°C (-22°F to 104°F)
Optics
-
Selectable CCT switch with choices of 3500K, 4000K, and 5000K.
-
Industry-leading LEDs with ≥80 CRI.
-
Lumen Maintenance: >161,000 hours (L70)
Mounting
-
Ready to be suspended with adjustable cable or surface mounted with snap joints.
Warranty
-
Backed by US LED's industry leading Ten-Year Warranty.
Stocked Configurations
USL1 in-stock configurations are subject to change at any time. Please contact our customer service team for the most recent list of stocked configurations.
