      SCL2

      Round LED Mini Panel - Selectable Wattage

      • Intertek
      • RoHS
      • 3 Year Warranty

      With a low-profile design and stay-white acrylic diffuser, the SCL2 is the perfect solution to illuminate smaller commercial applications like self-storage units, utility areas, and other similar spaces. The SCL1 is available in a slim 9” round model and offers selectable wattage options.

      Data Sheet IES File Installation Guide Literature

      Product Specs

      Color Temperatures:
      4000K, 5000K
      Max Lumens:
      1987
      Voltage:
      120-277V
      Wattage:
      10W, 15W, 18W, Selectable Wattage

      Product Details

      Key Features

      • Versatile LED mini panel light designed for both new construction and retrofit projects.

      • Selectable switch for wattage options.

      • Integrated occupancy/photocell sensor.

      Construction

      • Diffused lens helps to provide comfortable, uniform light distribution.

      • Trim ring is a white matte finish. Consult factory for other color finishes.

      Electrical

      • 120-277VAC 50/60Hz input.

      • Power factor: >0.50 and THD <20%.

      • Operating temperature: -30°C to 40°C (-22°F to 104°F).

      Optics

      • Industry-leading LEDs with 4000K and 5000K CCT (minimum 80 CRI).

      • 360° field of view

      • Lumen Maintenance: 30,000 hours (L70)

      Mounting

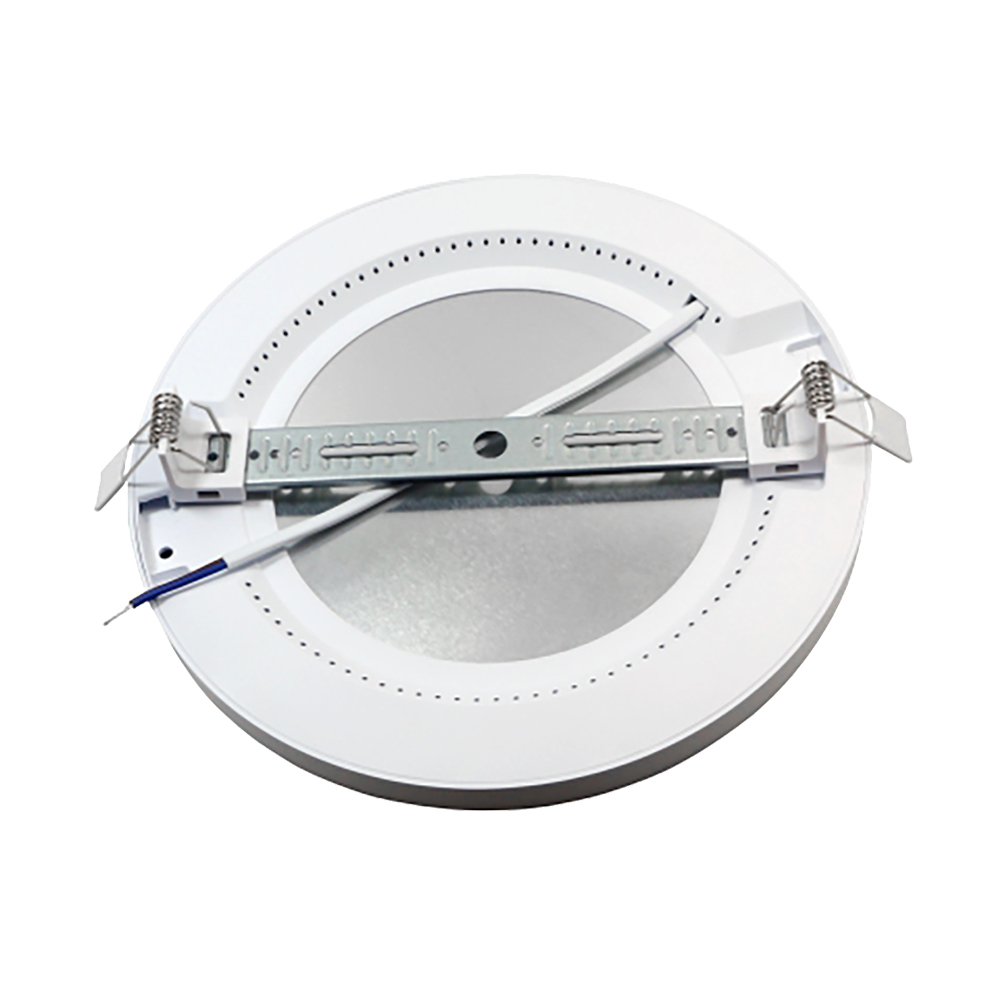

      • Housing is configured for mounting directly over a standard 4" outlet box (by others) or surface mounted using provided hardware.

      Warranty

      • Backed by US LED's Three-Year Warranty.

      Stocked Configurations

      SCL2 in-stock configurations are subject to change at any time. Please contact our customer service team for the most recent list of stocked configurations.
