      Saver XL2 Red LED Modules

      Channel Letter Lighting

      • RJ Cabinet Lighting
      • UL Certified
      • 10 Year Warranty
      • IP67

      Saver XL2 Red (SXL2) is US LED’s next generation of channel letter lighting, maximizing performance with a minimum presence. Now accommodating more modules per power supply, Saver XL2’s proprietary optic provides even greater distribution than ever before for more efficient installations.

      Data Sheets Accessories Installation Guide IES File

      Product Specs

      Color Temperatures:
      Red 623nm
      Max Lumens/ft:
      30.76
      Voltage:
      12VDC
      Wattage:
      .72W
      Accessories:
      US LED Power Supply, LED Enclosure Box, Dimming Controller, Wire Management Clips

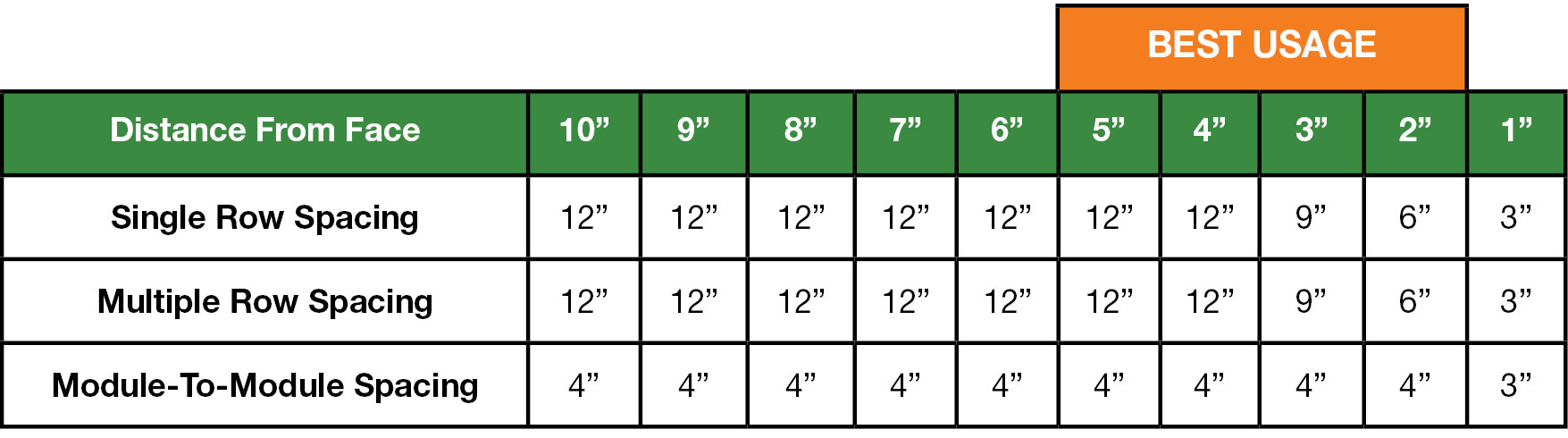

      Spacing Chart

      Click to enlarge
      Saver XL2 Red LED Modules

      Product Details

      Key Features

      • Ultra-long life LED modules provide high performance illumination in a small form factor.

      • Ideal for applications as shallow as 1" depth.

      • Available in white LEDs only.

      Construction

      • Modules are IP67 rated to prevent against penetration of dust and moisture.

      • Dimensions: 1.00" x 0.63" x 0.236".

      Electrical

      • 12VDC input.

      • 0-10V dimming available via controller accessory (sold separately).

      • Operating temperature: -40°C to 60°C (-40°F to 140°F).

      Optics

      • Industry-leading Red LEDs (623nm).

      • 175° beam angle for ultra-wide light distribution.

      Mounting

      • Modules mounted using peel-and-stick 3M VHB tape.

      Warranty

      • Backed by US LED's industry-leading Ten-Year Warranty.

      Stocked Configurations

      SXL2 Red in-stock configurations are subject to change at any time. Please contact customer service for the most recent list of stocked configurations.
