      Right Choice Series

      LED Area/Site Light - Selectable CCT

      • UL Certified
      • DLC Listed
      • 10 Year Warranty
      • CCT Selectable
      • IP65

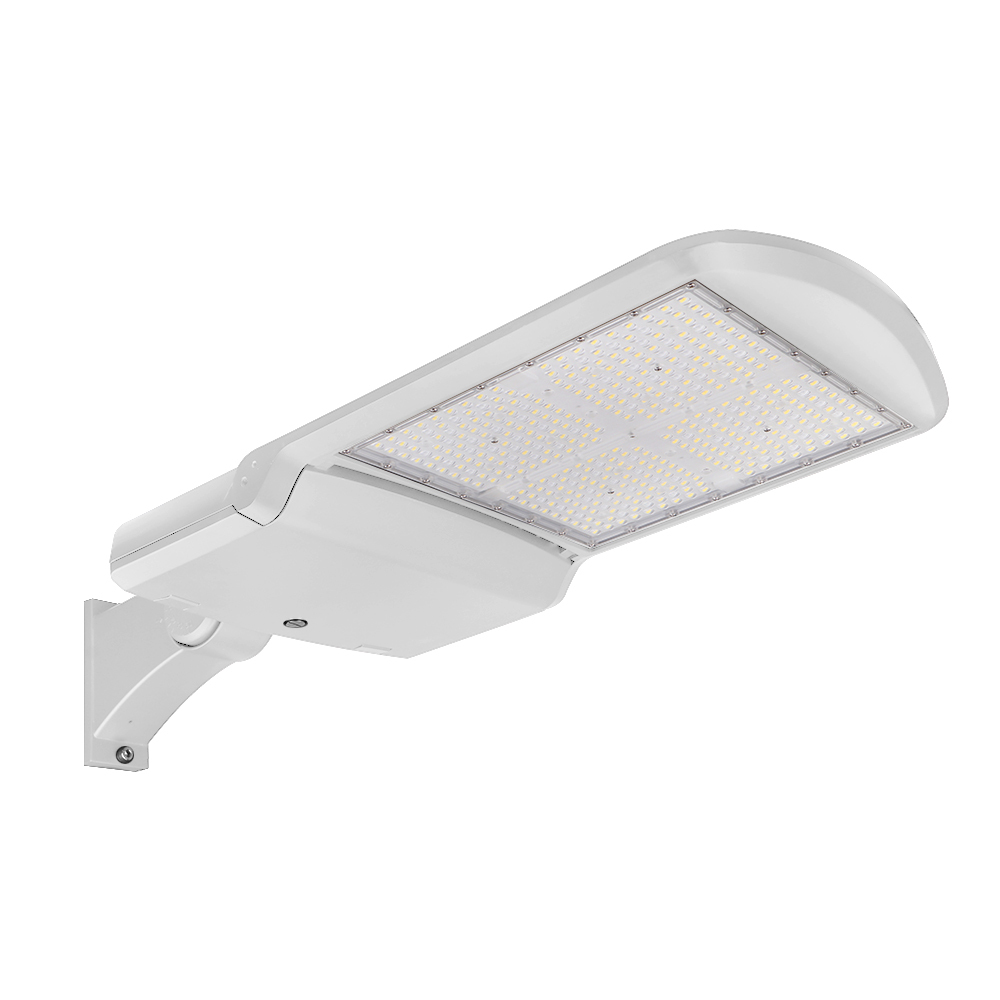

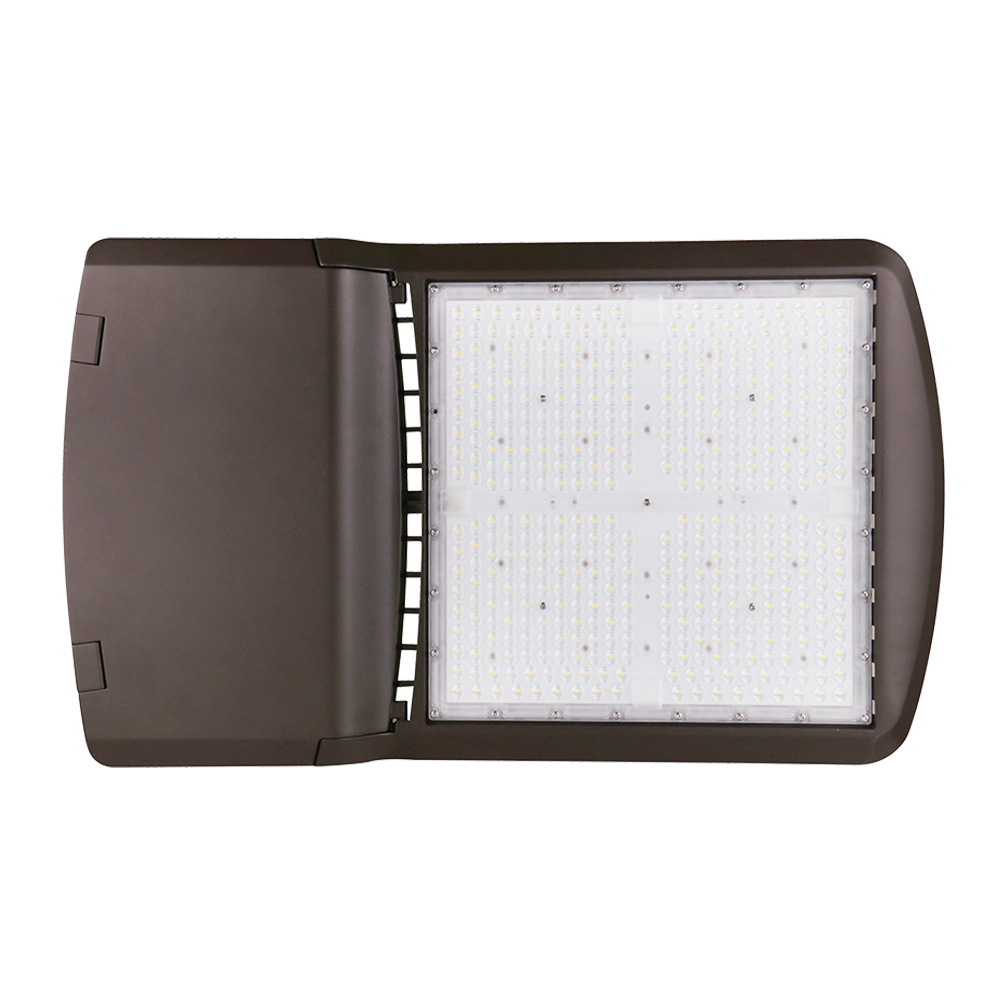

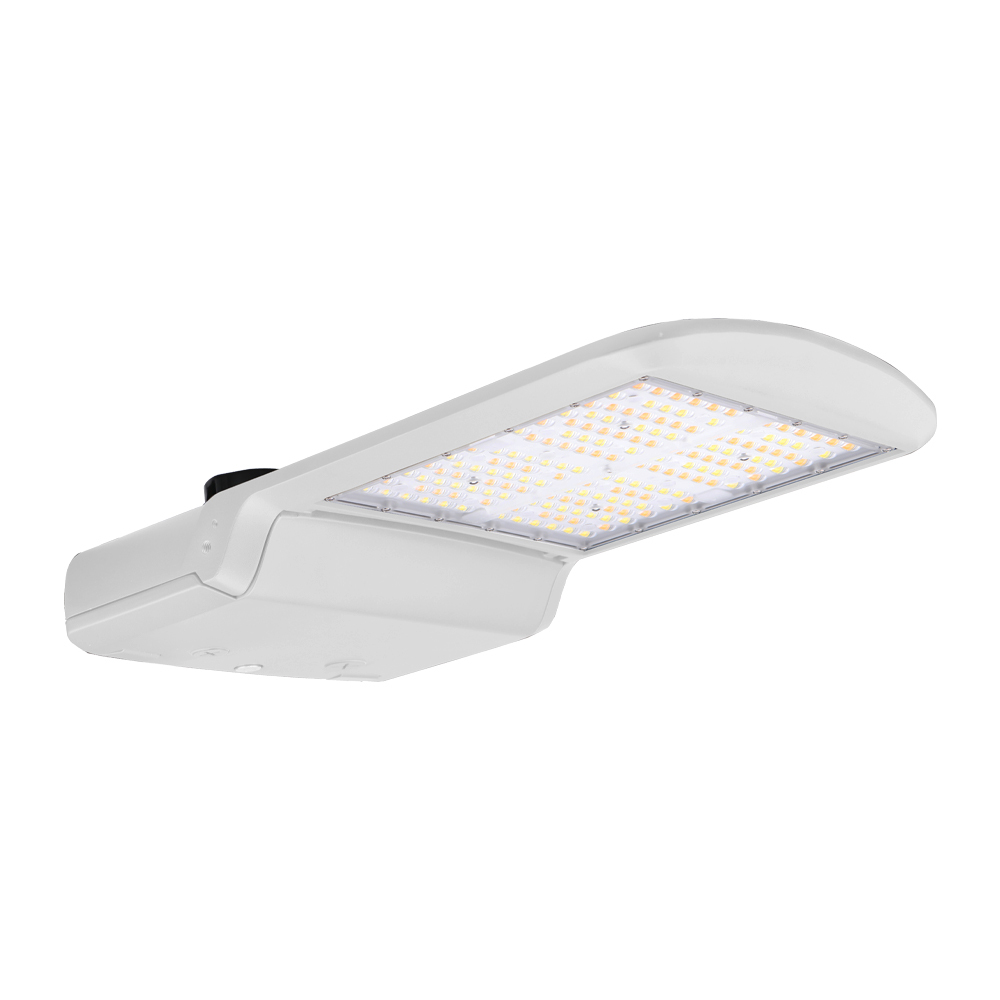

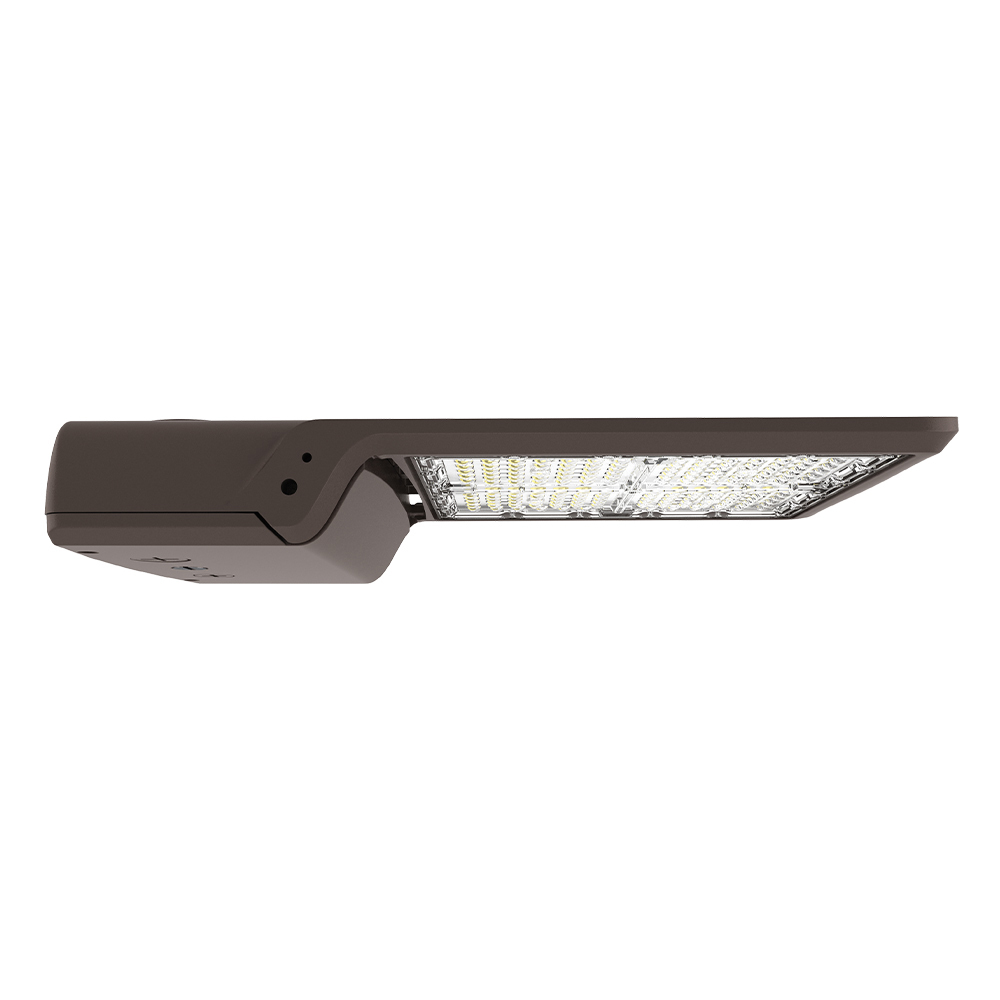

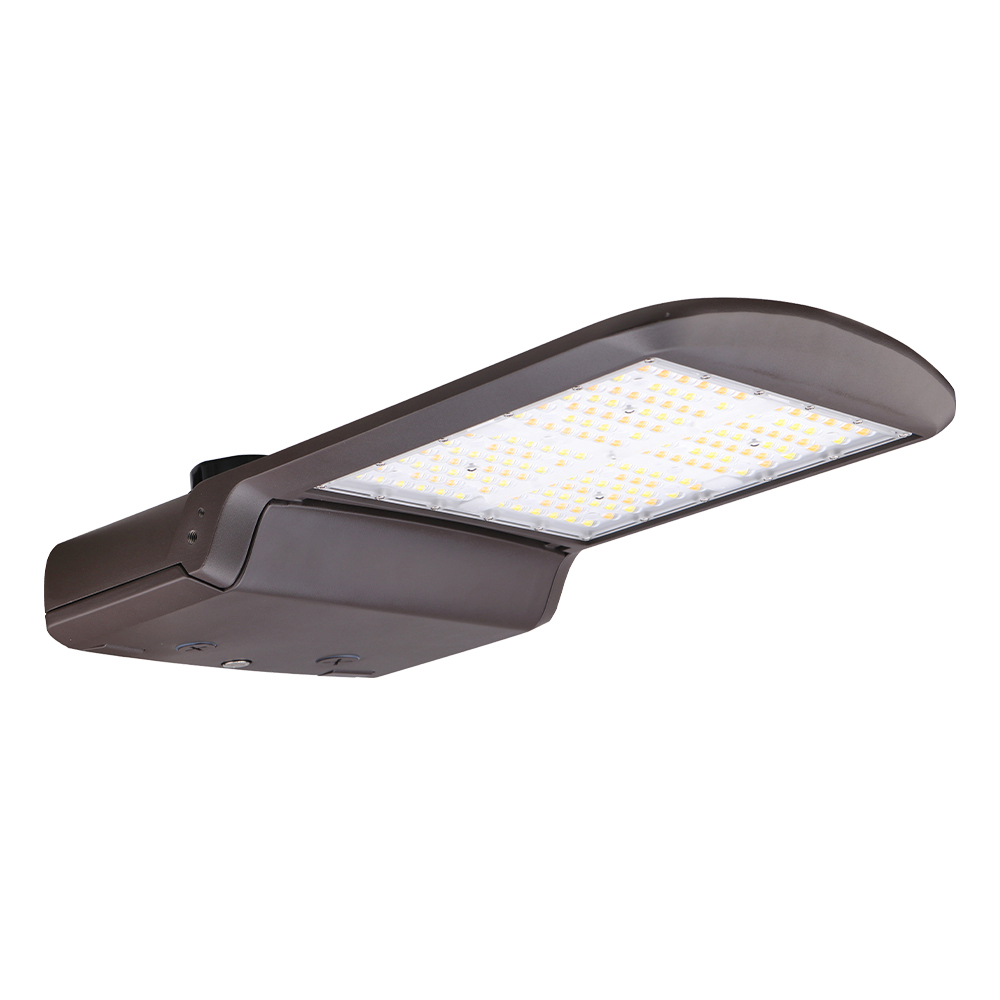

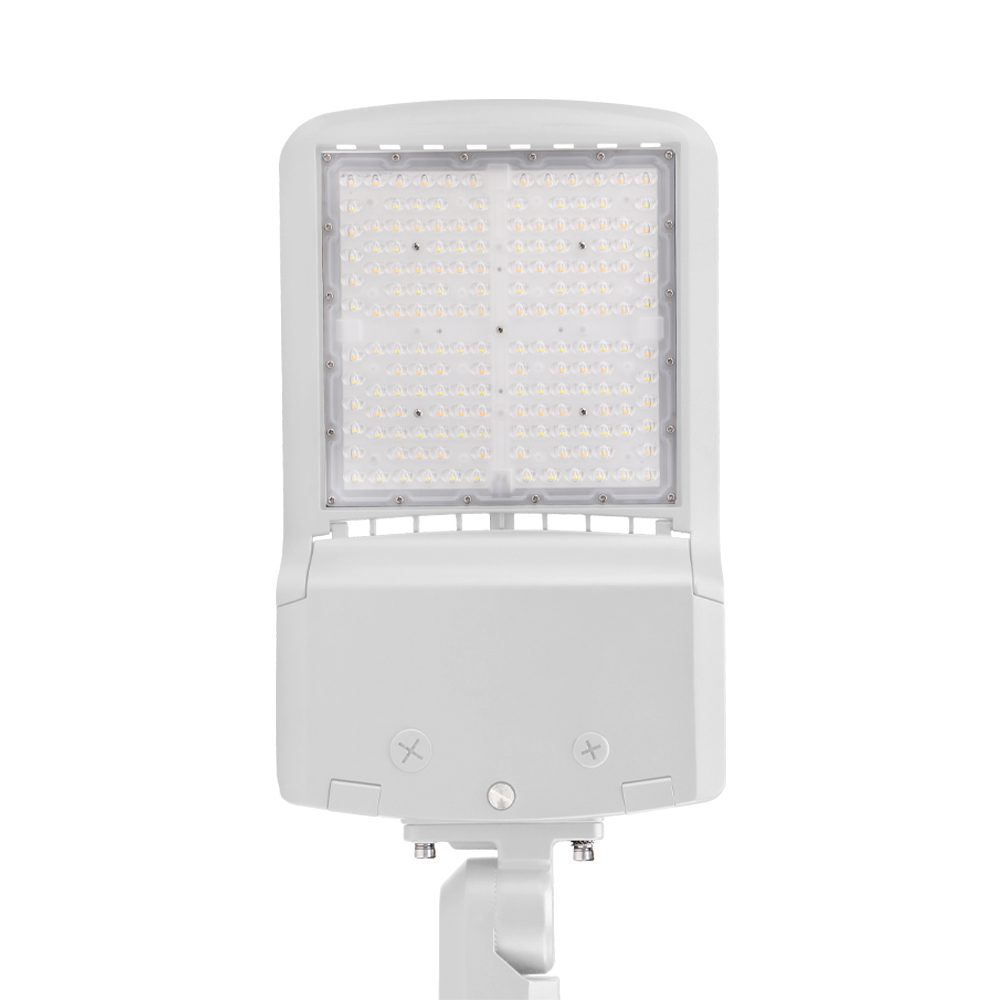

      The contemporary styling of the Right Choice Series (RCAL1/RCAL2) presents an attractive aesthetic that incorporates seamlessly with the existing architecture. It provides all the benefits of advanced LED technology, including selectable CCT, into a high-performing, ultra-long-life outdoor luminaire. Best-in-class photometric performance ensures exceptional uniformity and optimal pole spacing. With multiple lumen packages and mounting options, the RCAL can be a complete lighting solution for any outdoor application.

      Data Sheet IES File Installation Guide Literature

      Product Specs

      Color Temperatures:
      3000K, 4000K, 5000K, Selectable CCT
      Max Lumens:
      77642
      Voltage:
      120-277V, 347-480V
      Wattage:
      100W, 150W, 200W, 300W, 375W, 120W, 500W, 250W
      Additional Options:
      Photocell, Motion Sensor
      Accessories:
      Round Tenon Mount, Adjustable Square/Round Pole Mount, Adjustable Slip Fitter Mount, Trunnion Mount, Back Light Shield, House Side Shield

      Product Details

      Key Features

      • Best-in-class outdoor lighting solution that ensures outstanding performance and value.

      • Sleek aesthetic presents a modern appearance for sites and is night sky friendly.

      • Easy installation by one person in the field.

      • Optional rotatable optics provide design flexibility for unique aspects of a site plan to deliver light exactly where it's needed.

      • Selectable correlated color temperature (CCT) with integrated switch (RCAL1 only).

      • BAA-compliant model available.

      Construction

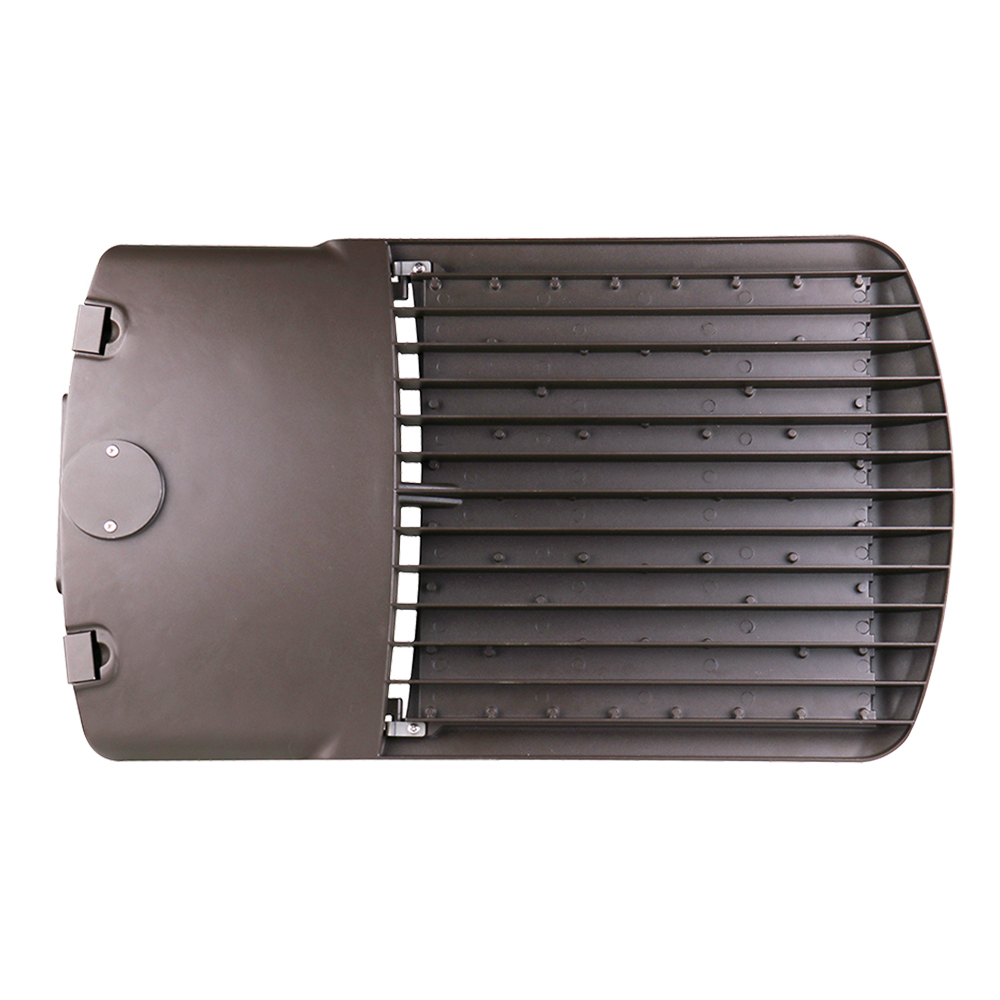

      • Die-cast aluminum housing protects integral components from harsh environments and optimizes thermal management.

      • Housing is protected by a corrosion resistant powder coat available in standard bronze, white or black finish. Consult factory for custom color options.

      • IP65 rated enclosure prevents intrusion from environmental elements that could degrade performance.

      Electrical

      • 120-277VAC or 277-480VAC; 50/60Hz input.

      • IP65 rated Class 2 driver; 0-10V dimming standard.

      • 10kV surge protection standard; 20kV option also available.

      • System power factor >90% and THD ≤20%.

      • Operating temperature: -40°C to 50°C (-40°F to 122°F).

      Optics

      • IP65 rated LED light engine prevents dust or moisture from degrading performance.

      • Precision molded optics: IES Type II, Type III, Type IV, or Type V distributions. Optional rotatable optics available (consult factory).

      • Industry-leading LEDs with 3000K, 4000K, and 5000K CCT (min. 80 CRI). Selectable CCT switch available on RCAL1 only.

      • Lumen Maintenance: ≥167,000 hours (L70).

      Mounting

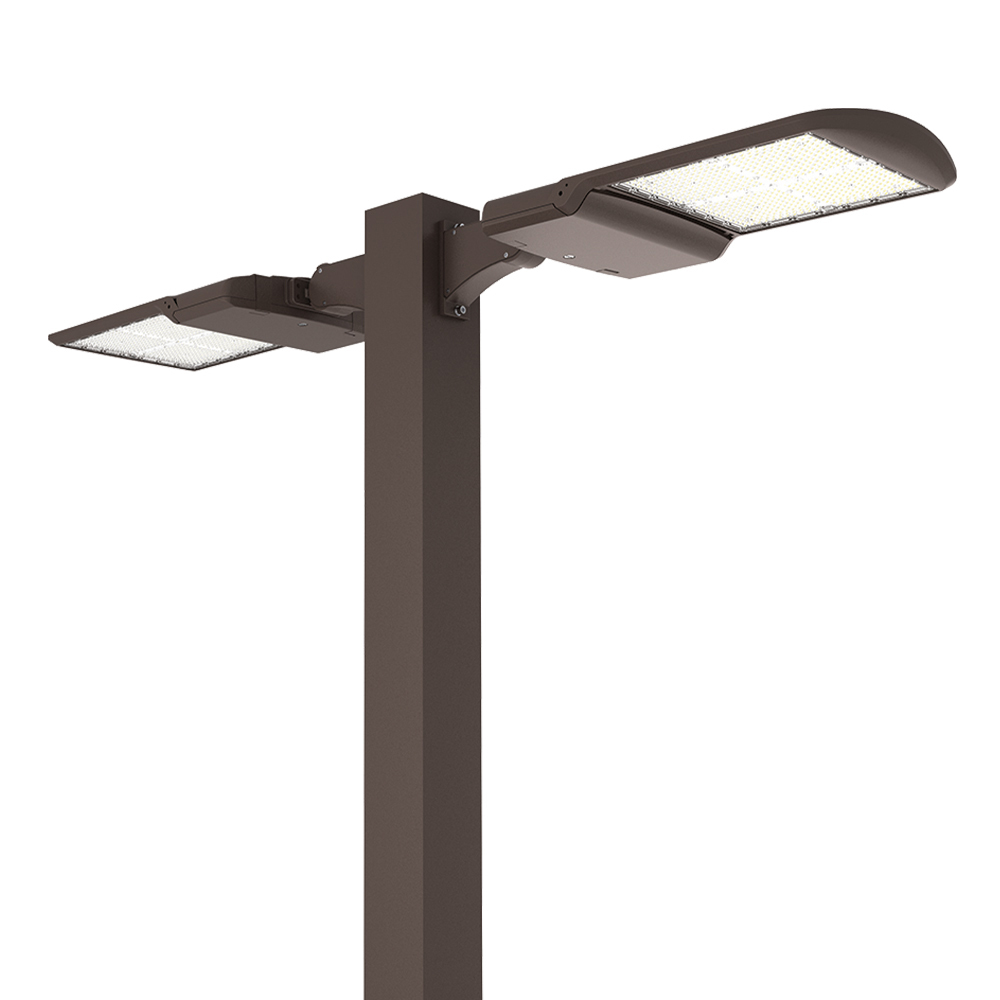

      • Adjustable slip fitter mount, direct pole mount, or trunnion mount accessories available.

      Warranty

      • Backed by US LED's industry-leading Ten-Year Warranty.

      Stocked Configurations

      RCAL1 and RCAL2 in-stock configurations are subject to change at any time. Please contact customer service for the most recent list of stocked configurations.
