QubePAK Regal 3
LED Architectural Wall Pack
The Qube®PAK Regal 3 (WPR3) LED wall pack is designed to easily integrate into any existing architecture and provide superior illumination. With an adjustable design, the QubePAK Regal 3 provides a complete site-wide solution for commercial exterior applications. Its elegant aesthetics combined with first-class performance make it a popular choice with specifiers and lighting designers.
Product Specs
Product Details
Key Features
-
Modern LED replacement for traditional fluorescent or HID fixtures.
-
Elegant yet rugged construction effortlessly integrates with existing architecture.
-

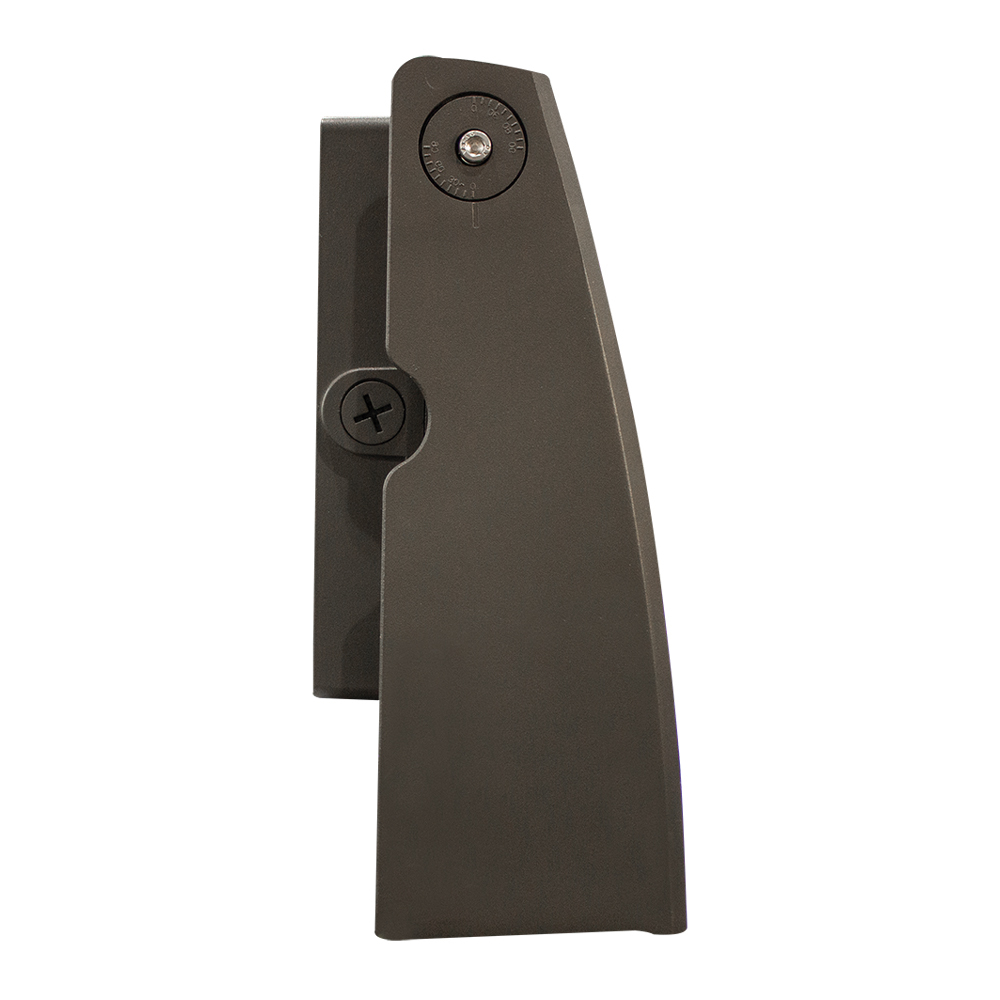

Adjustable, full-cutoff design with a tilt mechanism that allows for precise aiming.
-
Night sky friendly: eliminates light pollution and minimizes glare.
Construction
-
Robust die-cast aluminum housing protects integral components from harsh environments and optimizes thermal management.
-
Housing is protected by a corrosion resistant bronze powder coat finish.
-
Impact-resistant polycarbonate lens.
Electrical
-
120-277VAC. 0-10V dimming standard.
-
System power factor >90% and THD <20%.
-
Photocell/motion sensor available.
-
Operating temperature: -40°C to +40°C (-40°F to +104°F)
Optics
-
Type II optical distribution standard. Consult factory for other available distributions.
-
Industry-leading LEDs with 5000K CCT (minimum 70 CRI).
-
Lumen Maintenance: 167,000 hours (L70)
Mounting
-
Housing is configured for mounting directly over a standard 4" outlet box (by others) or surface wiring via any of the convenient 1/2" threaded conduit entries.
Warranty
-
Backed by US LED's industry-leading Ten-Year Warranty.
Stocked Configurations
WPR3 in-stock configurations are subject to change at any time. Please contact customer service for the most recent list of stocked configurations.
