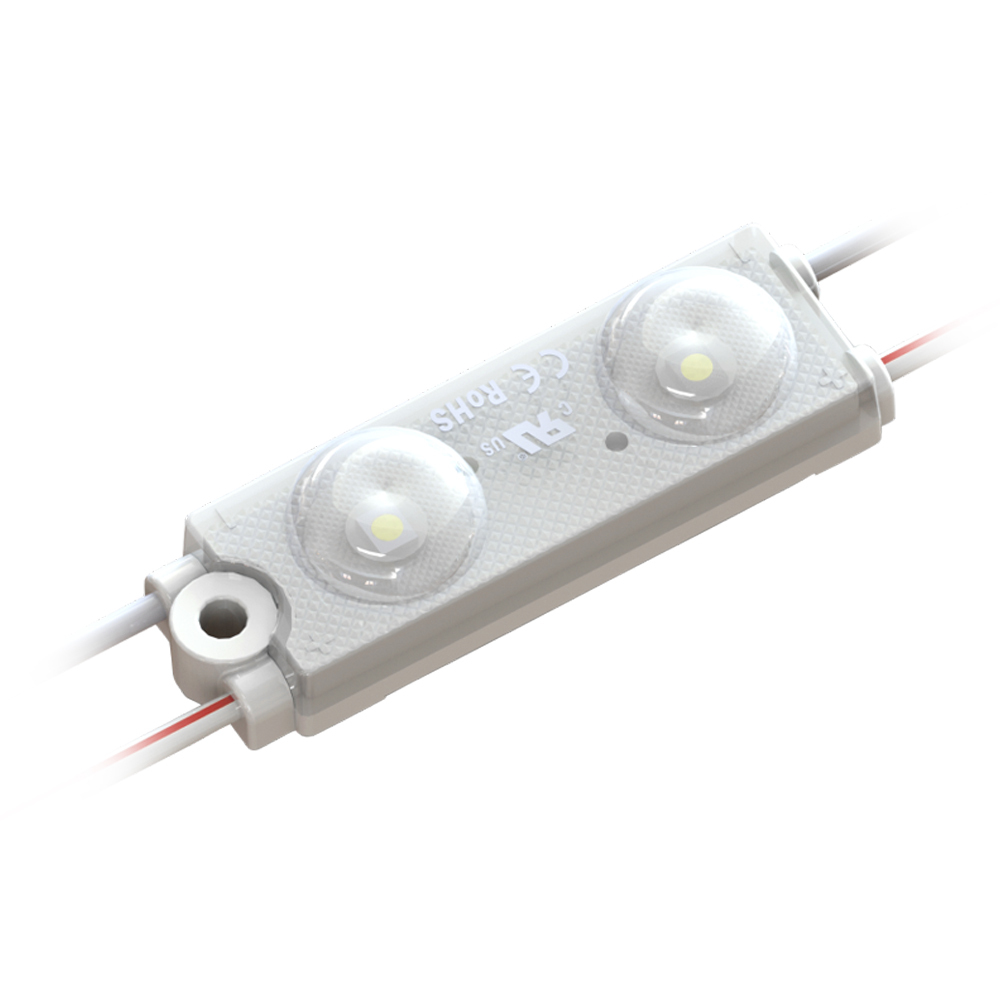

      Point XL2 White LED Modules

      Channel Letter Lighting

      • RJ Cabinet Lighting
      • UL Certified
      • 10 Year Warranty
      • IP67

      Point XL2 (PXL2) is US LED’s next generation of channel letter lighting that offers industry-leading performance in a cost-effective solution. Now accommodating even more modules per power supply, Point XL2 delivers best-in-class efficacy up to 161 lumens per watt. In addition, its proprietary optic provides even greater distribution than ever before for more efficient installations.

      Data Sheets Accessories Installation Guide IES File

      Product Specs

      Color Temperatures:
      3000K, 4000K, 5000K, 6500K
      Max Lumens/ft:
      196
      Voltage:
      12VDC
      Wattage:
      1.2W
      Accessories:
      US LED Power Supply, LED Enclosure Box, Dimming Controller, Wire Management Clips

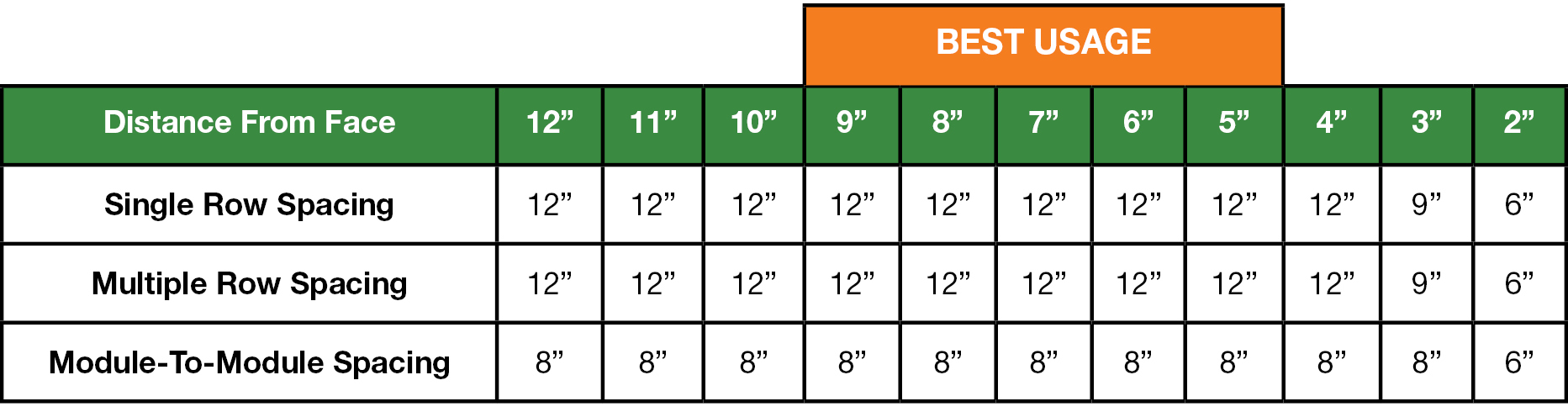

      Spacing Chart

      Click to enlarge

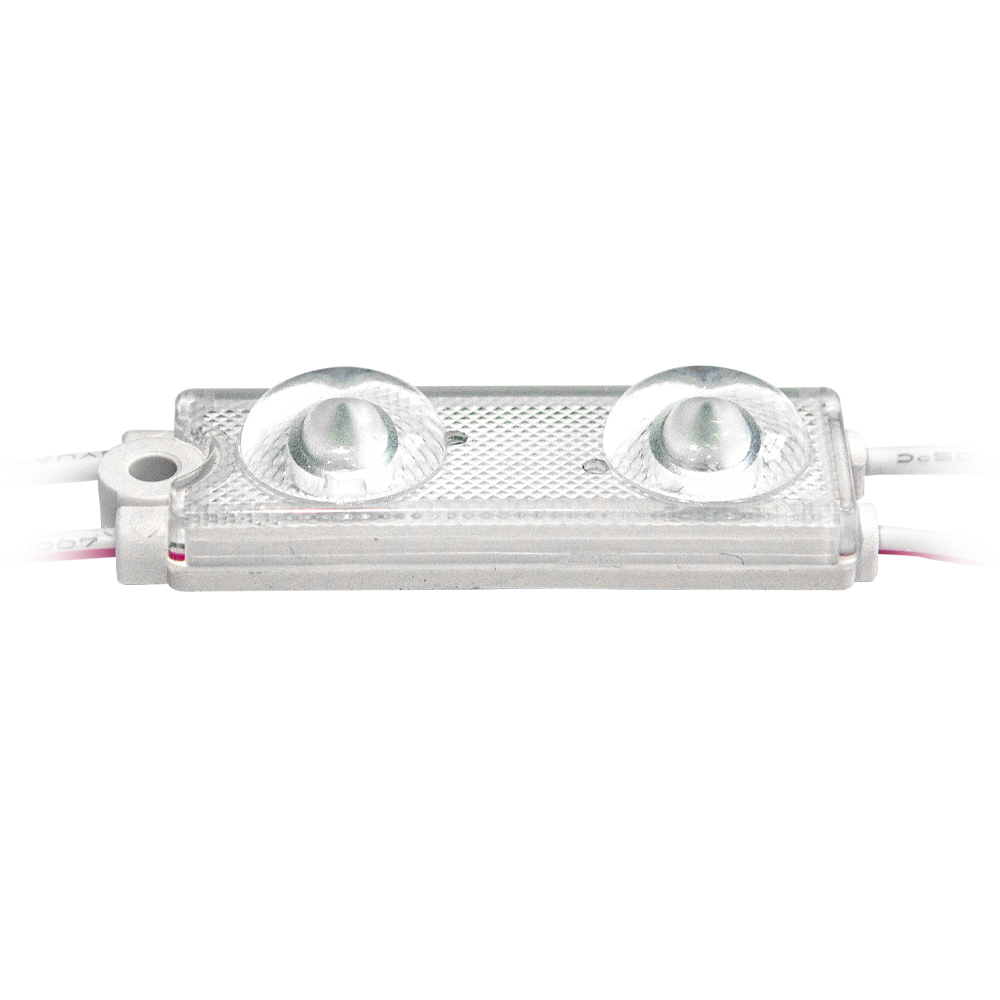

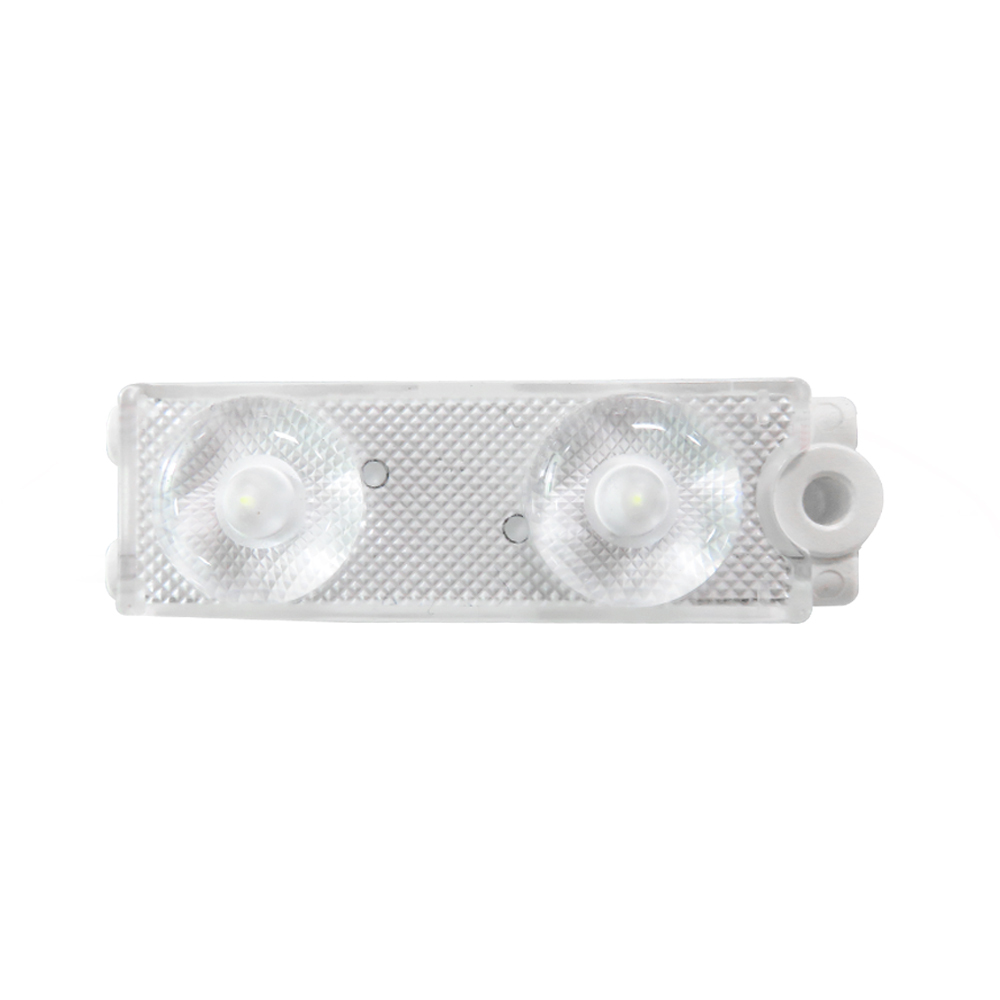

      Point XL2 White LED Modules

      Product Details

      Key Features

      • Ultra-long life LED modules provide high performance illumination at excellent value.

      • High efficacy performance up to 161 LPW.

      • Ideal for 2"-12" channel letter depths.

      Construction

      • Modules are IP67 rated to prevent against penetration of dust and moisture.

      • Dimensions: 1.96" x 0.63" x 0.236".

      Electrical

      • 12VDC input.

      • 0-10V dimming available via controller accessory (sold separately).

      • Operating temperature: -40°C to 60°C (-40°F to 140°F).

      Optics

      • Industry-leading LEDs with 3000K, 4000K, 5000K, 6500K CCT (minimum 70 CRI).

      • 175° beam angle for ultra-wide light distribution.

      Mounting

      • Modules mounted using peel-and-stick 3M VHB tape.

      Warranty

      • Backed by US LED's industry-leading Ten-Year Warranty.

      Stocked Configurations

      PXL2 in-stock configurations are subject to change at any time. Please contact customer service for the most recent list of stocked configurations.
