      Point XL2 Blue LED Modules

      Channel Letter Lighting

      • RJ Cabinet Lighting
      • UL Certified
      • 10 Year Warranty
      • IP67

      Point XL2 Blue (PXL2) is US LED’s next generation of channel letter lighting that offers industry-leading performance in a cost-effective solution. Now accommodating even more modules per power supply, Point XL2 provides even greater distribution than ever before for more efficient installations.

      Data Sheets Accessories Installation Guide IES File

      Product Specs

      Color Temperatures:
      Blue 465nm
      Max Lumens/ft:
      35
      Voltage:
      12VDC
      Wattage:
      1.6W
      Accessories:
      US LED Power Supply, LED Enclosure Box, Dimming Controller, Wire Management Clips

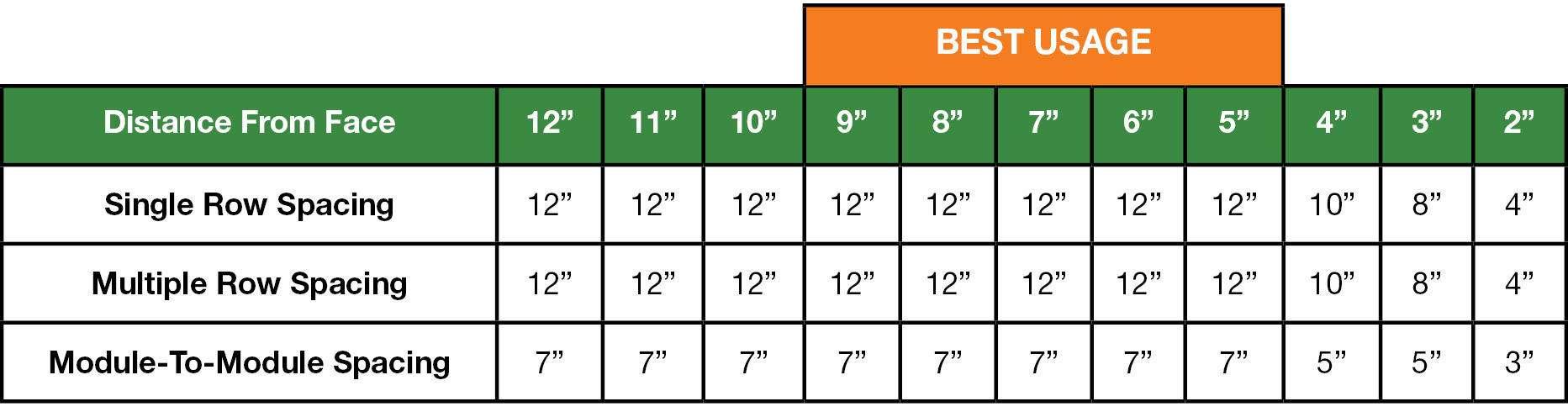

      Spacing Chart

      Click to enlarge
      Point XL2 Blue LED Modules

      Product Details

      Key Features

      • Ultra-long life LED modules provide high performance illumination at excellent value.

      • Ideal for 2"-12" channel letter depths.

      Construction

      • Modules are IP67 rated to prevent against penetration of dust and moisture.

      • Dimensions: 1.96" x 0.63" x 0.236".

      Electrical

      • 12VDC input.

      • 0-10V dimming available via controller accessory (sold separately).

      • Operating temperature: -40°C to 60°C (-40°F to 140°F).

      Optics

      • Industry-leading Blue LEDs (465nm).

      • 175° beam angle for ultra-wide light distribution.

      Mounting

      • Modules mounted using peel-and-stick 3M VHB tape.

      Warranty

      • Backed by US LED's industry-leading Ten-Year Warranty.

      Stocked Configurations

      PXL2 Blue in-stock configurations are subject to change at any time. Please contact customer service for the most recent list of stocked configurations.
