      L-Grid Series 2EH 1x1

      LED Soffit Canopy

      • UL Certified
      • DLC Listed
      • 10 Year Warranty
      • RoHS

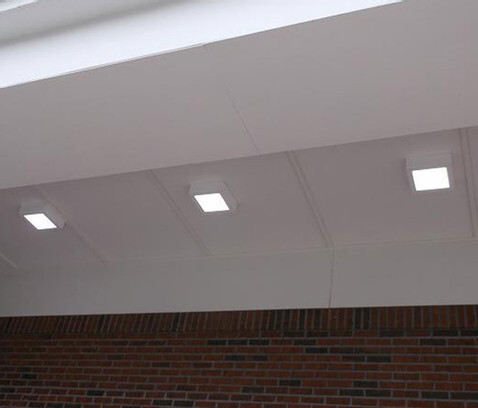

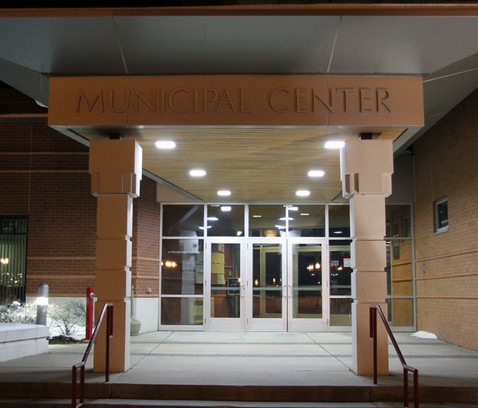

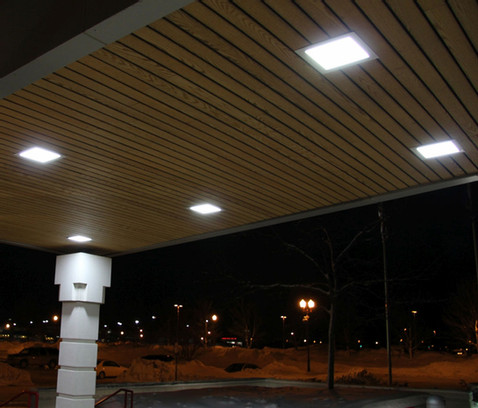

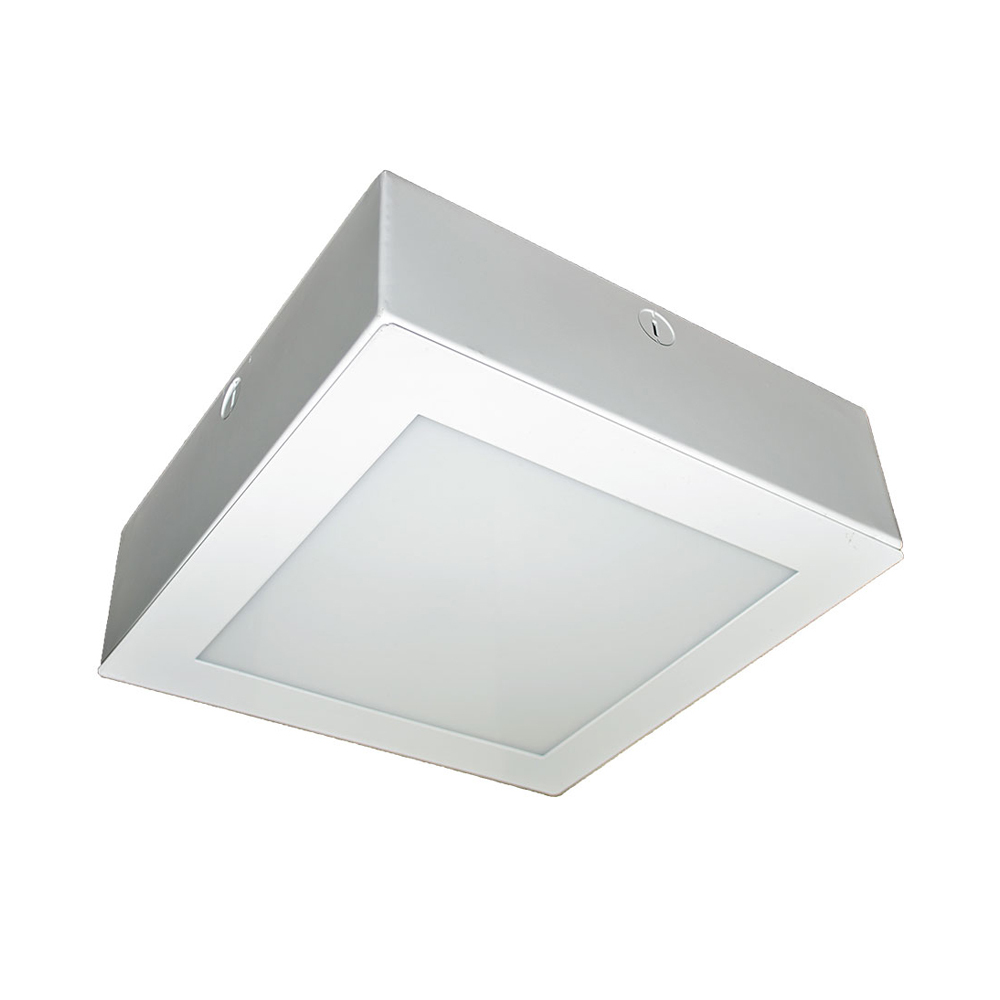

      For applications in walkways, overhangs, canopies, bathrooms, or confined spaces, US LED offers the L-Grid®2EH 1x1 (GTR2-11EH). The L-Grid®2EH 1x1 is an attractive and low-profile soffit solution that will blend in with the surrounding area while delivering an exceptional quality of light. Installation is simple and straight-forward, regardless of the application.

      Data Sheet IES File Installation Guide

      Product Specs

      Color Temperatures:
      3500K, 4000K, 5000K
      Max Lumens:
      2793
      Voltage:
      120-277V
      Wattage:
      24W
      Additional Options:
      Photocell, Emergency Battery Backup
      Accessories:
      Drywall Mounting Kit, Surface Mount Kit

      Product Details

      Key Features

      • Energy-efficient LED luminaire designed for covered soffit or canopy applications.

      • Low profile design, only 3.2 inches high.

      • Excellent uniformity of light in covered areas.

      • Surface mounted or recessed mounted.

      • Optional constant power battery back-up accessory available.

      • Ultra-long lifetime back by industry leading Ten-Year Warranty.

      Construction

      • .042" thick cold rolled steel frame protects integral components from harsh environments and optimizes thermal management.

      • Housing is protected by a corrosion resistant powder coat finish, painted white.

      • Frosted white lens offers complete shielding and uniform light distribution that's glare-free.

      • Low-profile design provides flexibility for installing in confined areas.

      • Weight: 6.0 lbs. (2.7kg).

      Electrical

      • 120-277VAC input.

      • 0-10V dimming via Mark VII interface.

      • System power factor >90% and THD <20%.

      • Photocell options available.

      • Operating temperature: -30°C to +45°C (-22°F to +113°F)

      Optics

      • Edge-to-edge illumination with no visible bright spots or pixelation.

      • Industry leading LEDs with 3500K, 4000K, and 5000K CCT (minimum 80 CRI).

      • Lumen Maintenance: 200,000 hours (L70) and 129,000 hours (L85).

      Mounting

      • Standard luminaire is designed to be surface mounted or recessed with mounting kit accessory (sold separately).

      Warranty

      • Backed by US LED's industry leading 10-year warranty.

      Stocked Configurations

      GTR2-11EH in-stock configurations are subject to change at any time. Please contact customer service for the most recent list of stocked configurations.
