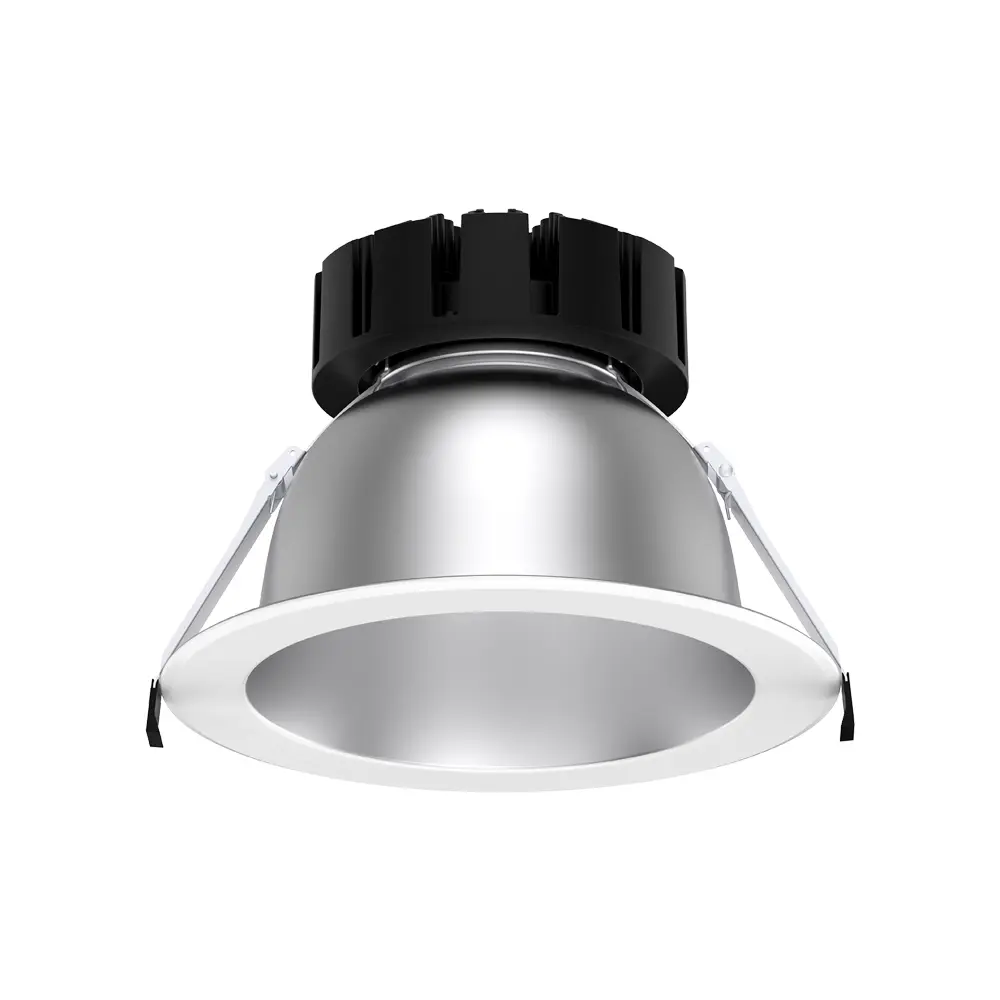

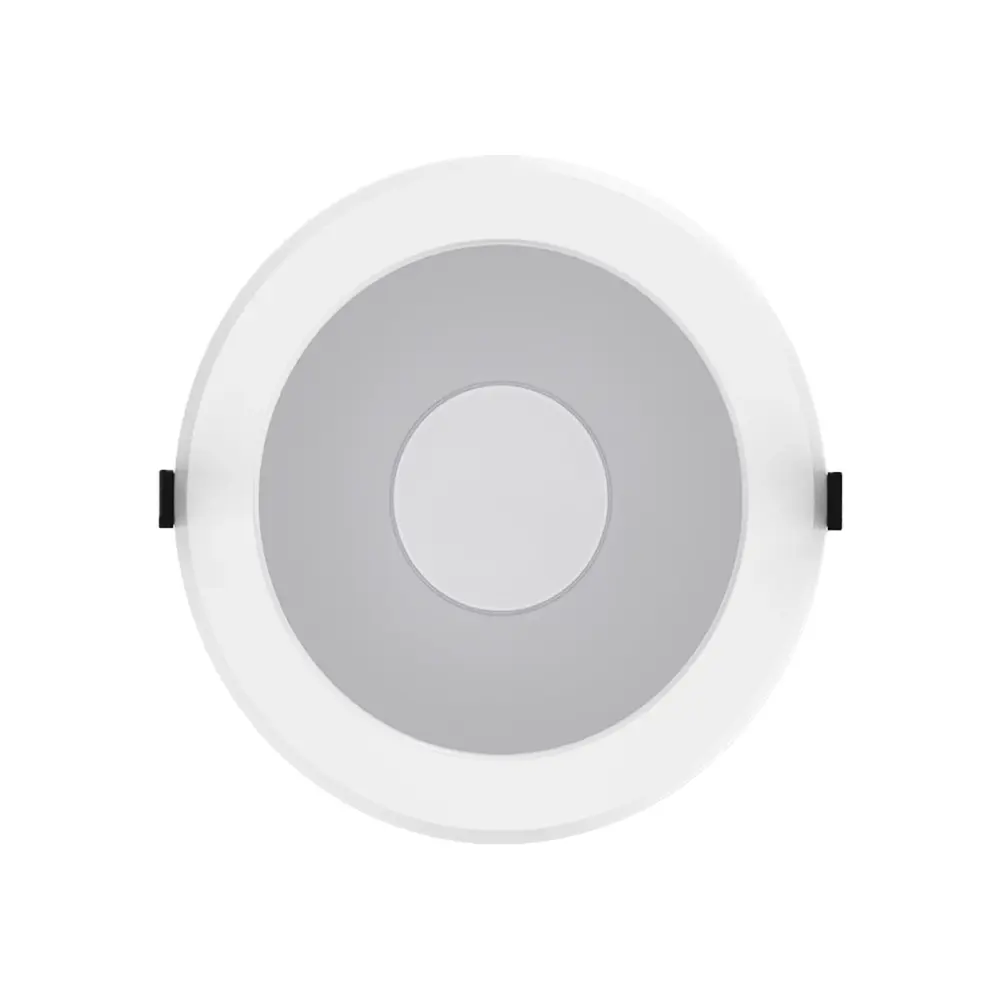

      L-Trim SOL XLE2 Select

      High-Output Downlight - Selectable CCT & Wattage

      • Intertek
      • Energy Star
      • CCT Selectable
      • 10 Year Warranty
      • RoHS

      The L-Trim SOL XLE2 Select (LTR5) is an all-in-one LED downlight solution that delivers both value and performance for projects needing high lumen output. It comes standard with selectable wattage and CCT allowing for in-the-field customization. The L-Trim SOL XLE2 Select is an ideal LED lighting solution for auto dealerships, restaurants, retail, healthcare, educational facilities, and other commercial applications.

      Data Sheet IES File Installation Guide

      Product Specs

      Color Temperatures:
      3000K, 4000K, 5000K, Selectable CCT
      Max Lumens:
      6200
      Voltage:
      120-277V
      Wattage:
      20W, 30W, 40W, 50W, 60W
      Additional Options:
      Battery Backup, Emergency Driver
      Accessories:
      Wall Control Dimmer, Rough-In Kit

      Product Details

      Key Features

      • Versatile LED downlight engineered projects needing high lumen output.

      • Selectable switch for wattage and CCT; minimum 90 CRI.

      • Diffused lens helps to provide comfortable, uniform light distribution.

      • Suitable for use in outdoor wet locations.

      Construction

      • Die-cast aluminum and polycarbonate housing offers a deep baffle configuration.

      • Includes integrated singular trim ring in a white matte finish.

      • Includes pre-installed flex conduit lead.

      • Frosted plastic lens reduces glare.

      Electrical

      • 120-277VAC 50/60Hz input.

      • 1-10V dimming standard.

      • Power factor: >0.90 and THD <20%.

      • Operating temperature: -20°C to 40°C (-4°F to 104°F).

      Optics

      • Industry-leading LEDs with selectable CCT via switch in the field: 3000K, 4000K, and 5000K CCT (minimum 90 CRI).

      • Two interchangeable beam angles: 50°/70° for 6 in. and 40°/60° for 8 in.

      • Lumen Maintenance: ≥ 50,000 hours (L70).

      Mounting

      • Mounts directly recessed into the ceiling with integrated spring action clips.

      Warranty

      • Backed by US LED's industry-leading Ten-Year Warranty.

      Stocked Configurations

      LTR5 in-stock configurations are subject to change at any time. Please contact customer service for the most recent list of stocked configurations.
