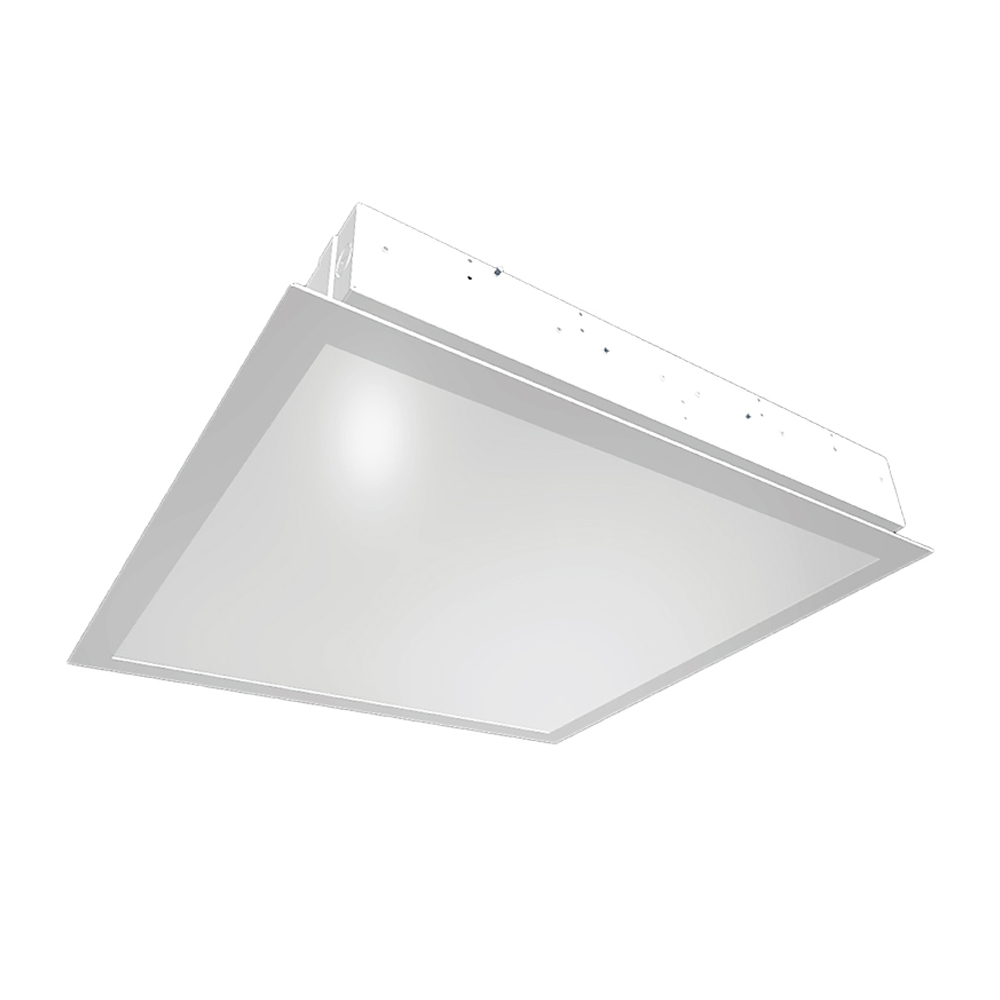

      L-Grid Series 2EH 2x2

      LED Recessed Flat Panel

      • UL Certified
      • NSF
      • 10 Year Warranty

      For new construction or one-for-one replacement applications, the L-Grid®2EH 2x2 (GTR2-22EH) troffer stands ready. It is the total low-bay lighting solution, providing an appealing and unobtrusive presence while simultaneously delivering extraordinary light through a flat, frosted lens. With convenient installation options available, integrating this luminaire into your workplace will be simple and straight-forward, regardless of the application.

      Data Sheet IES File Installation Guide

      Product Specs

      Color Temperatures:
      3500K, 4000K, 5000K
      Max Lumens:
      21480
      Voltage:
      120-277V
      Wattage:
      27.6W, 42.5W, 64.6W, 195.7W
      Additional Options:
      Air Return, Emergency Driver, Occupancy Sensor
      Accessories:
      Drywall Flange Kit, Wall Control Dimmer

      Product Details

      Key Features

      • An energy-efficient 2x2 LED recessed troffer that's ideal for new construction or retrofit applications.

      • NSF certified for controlled environments.

      • Integrated battery back-up option available.

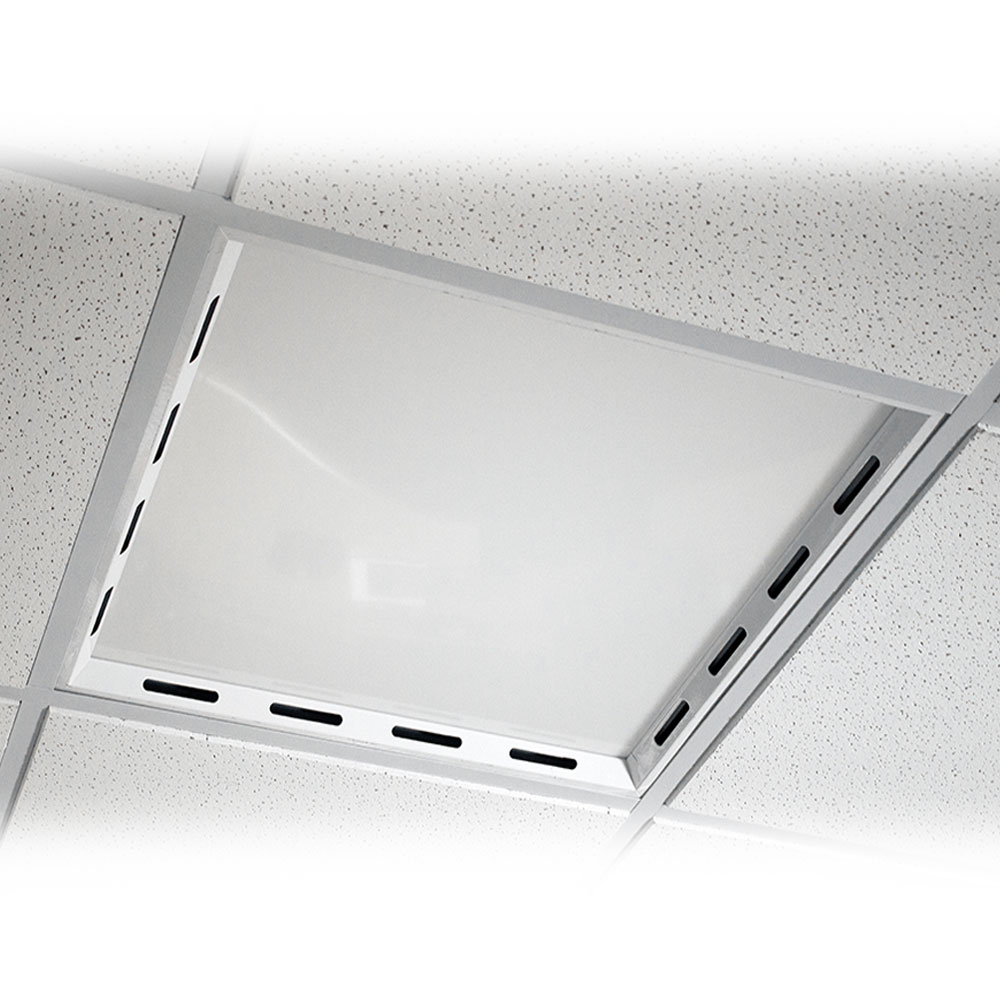

      • Plenum air return option with slots available.

      • BAA-compliant model available.

      Construction

      • Extruded aluminum frame with steel backing prevents light leak and is built for superior strength and durability.

      • Frosted white lens offers complete shielding and uniform light distribution that's glare-free.

      • Low-profile design provides flexibility for installing in low plenum areas (non-IC rated).

      • Weight: 15.0 lbs. (6.8kg)

      Electrical

      • 120-277VAC input.

      • 0-10V dimming standard (Mark 7 interface), excluding High Flux Level.

      • Integrated constant power battery back-up accessory available.

      • Operating temperature for Basic, Standard, and Medium Flux Level: -40°C to +45°C (-40°F to +113°F)

      • Operating temperature for High Flux Level 2: -40°C to +30°C (-40°F to +86°F)

      Optics

      • Edge-to-edge illumination with no visible bright spots or pixelation.

      • Industry leading LEDs with 3500K, 4000K, and 5000K CCT (minimum 80 CRI).

      • Lumen Maintenance: >200,000 hours (L70).

      Mounting

      • Easy to install in standard T-Grid ceilings.

      Warranty

      • Backed by US LED's industry leading Ten-Year Warranty.

      Stocked Configurations

      GTR2-22EH in-stock configurations are subject to change at any time. Please contact our customer service team for the most recent list of stocked configurations.
