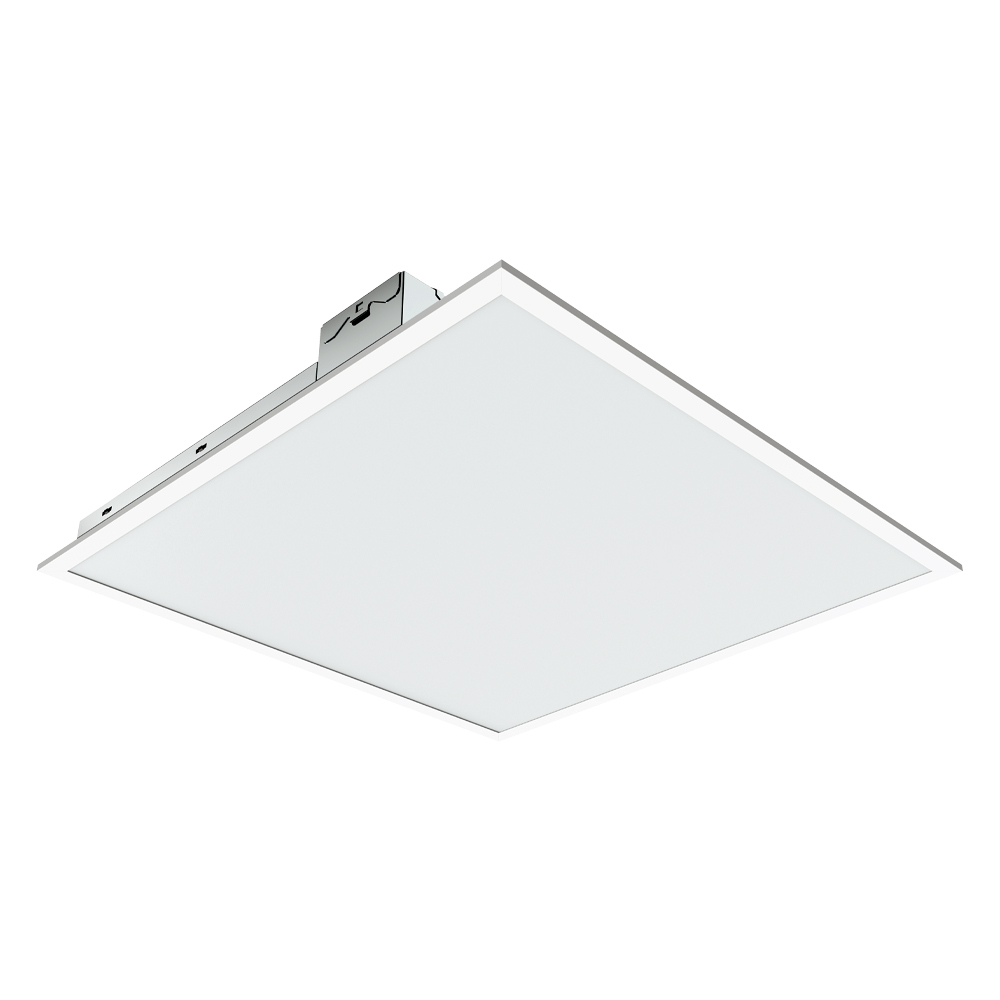

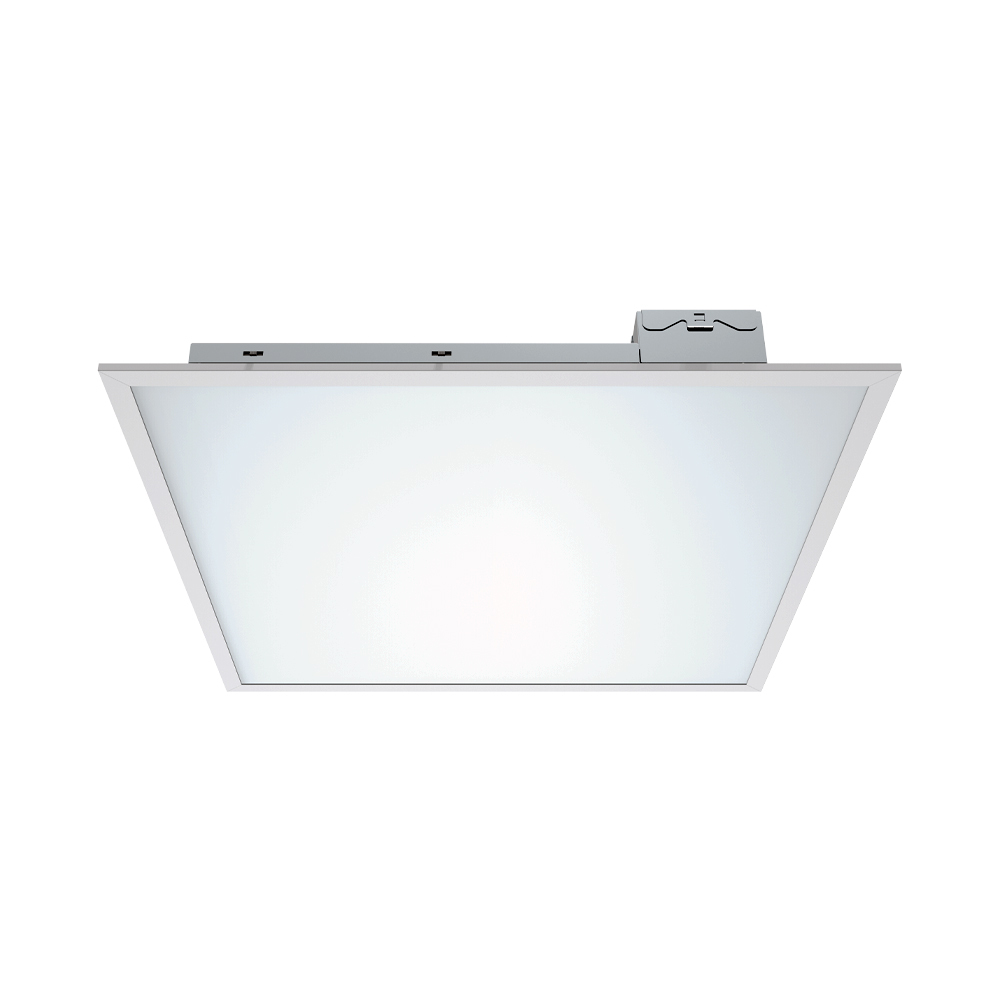

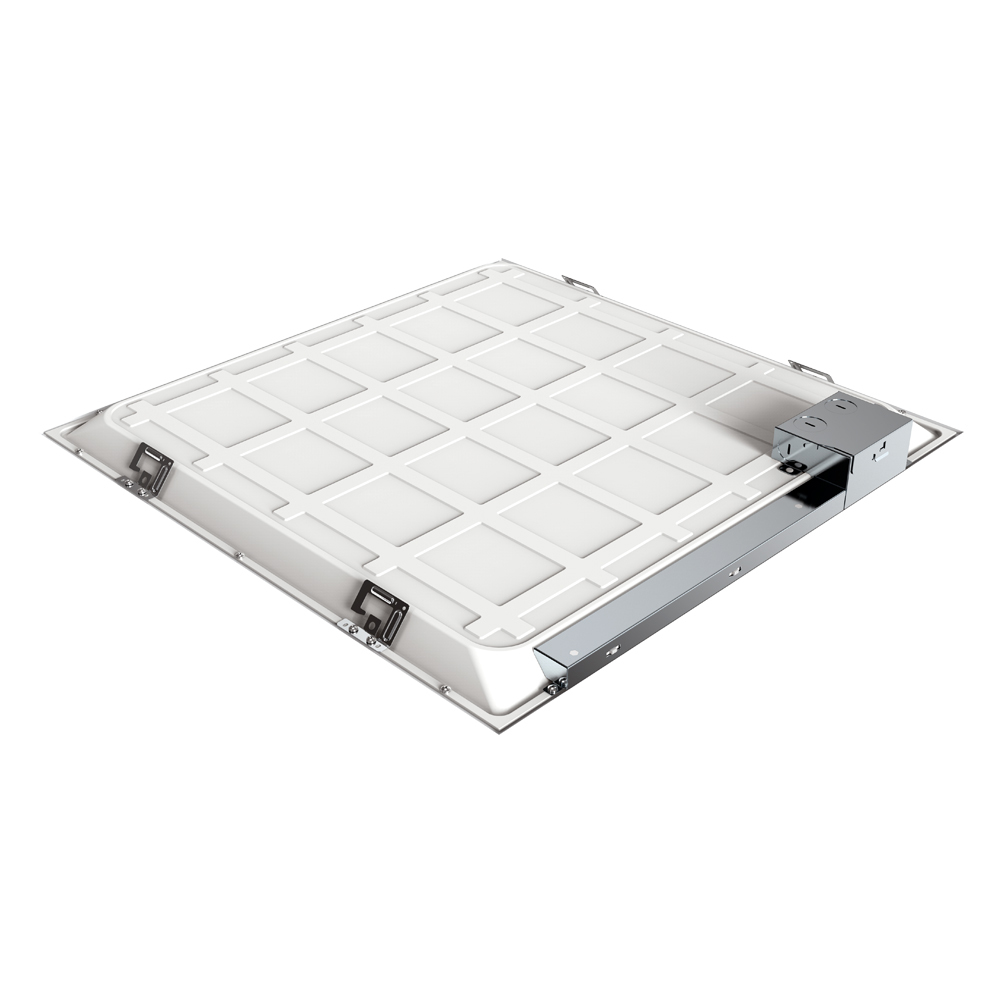

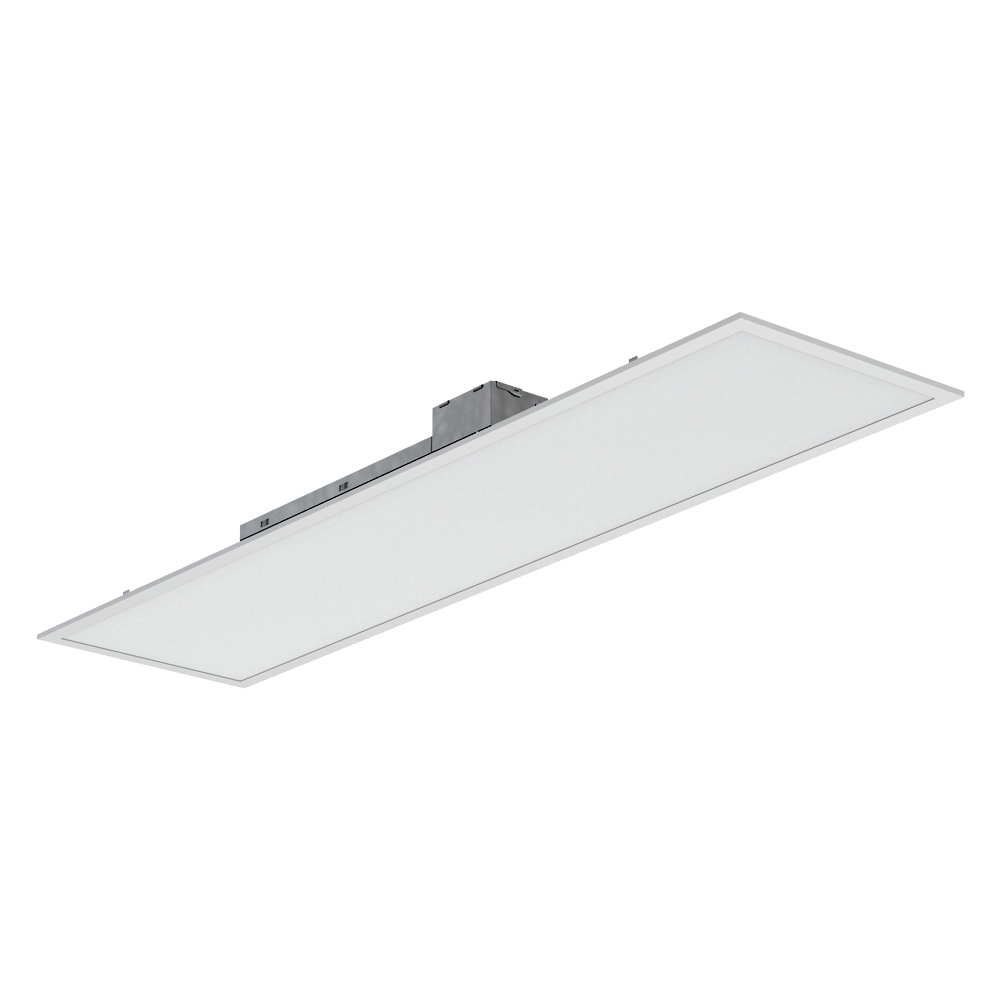

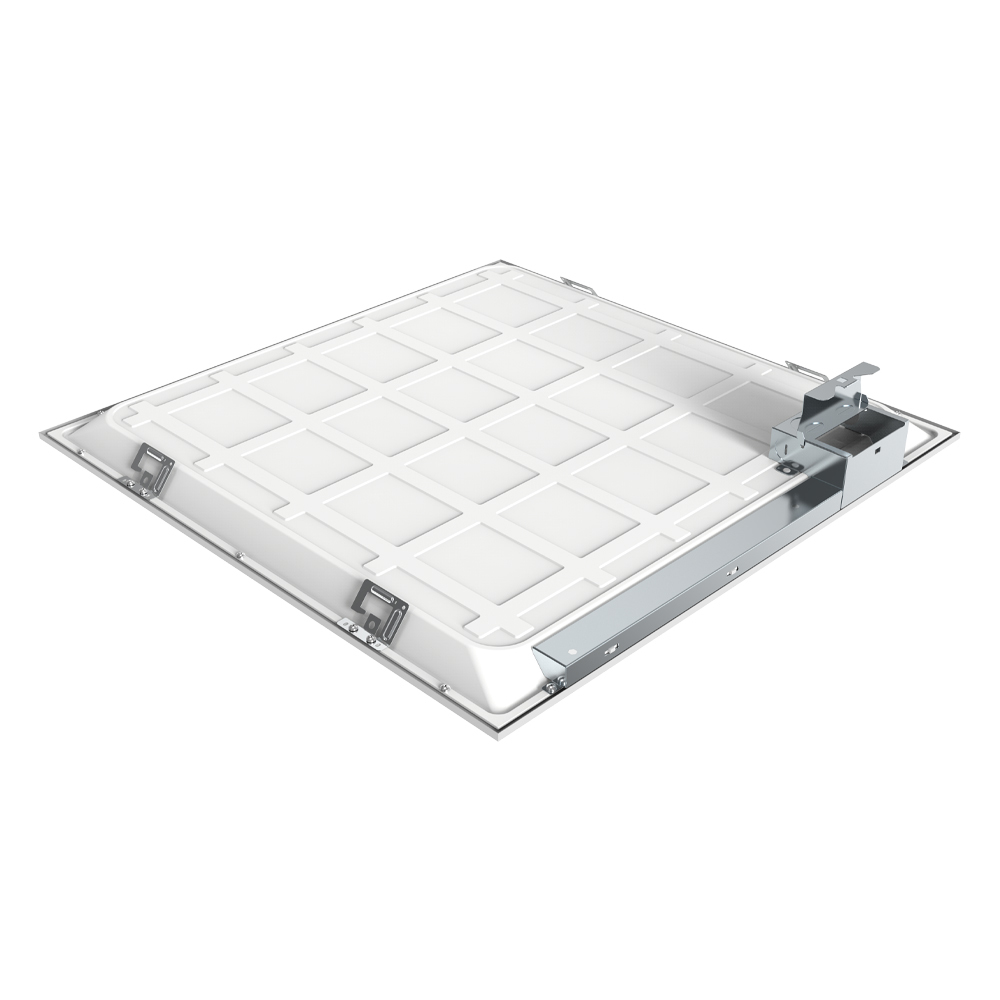

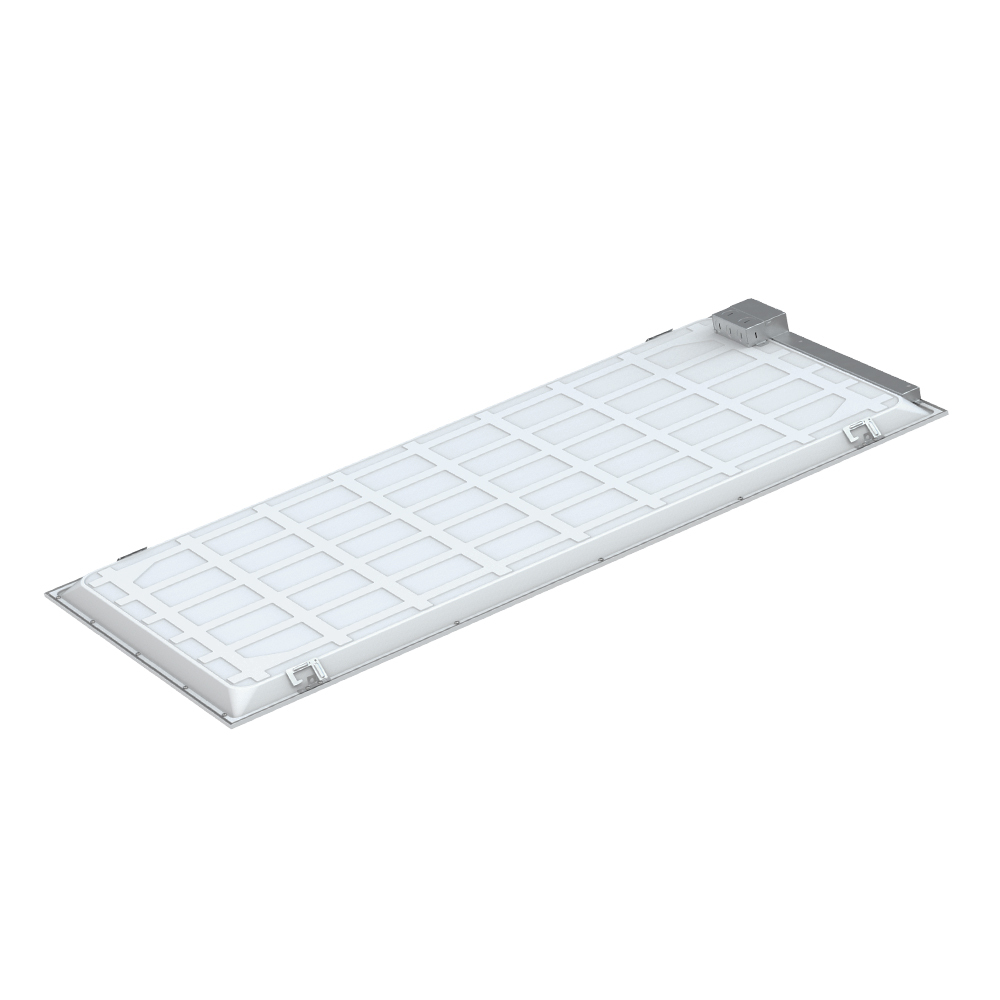

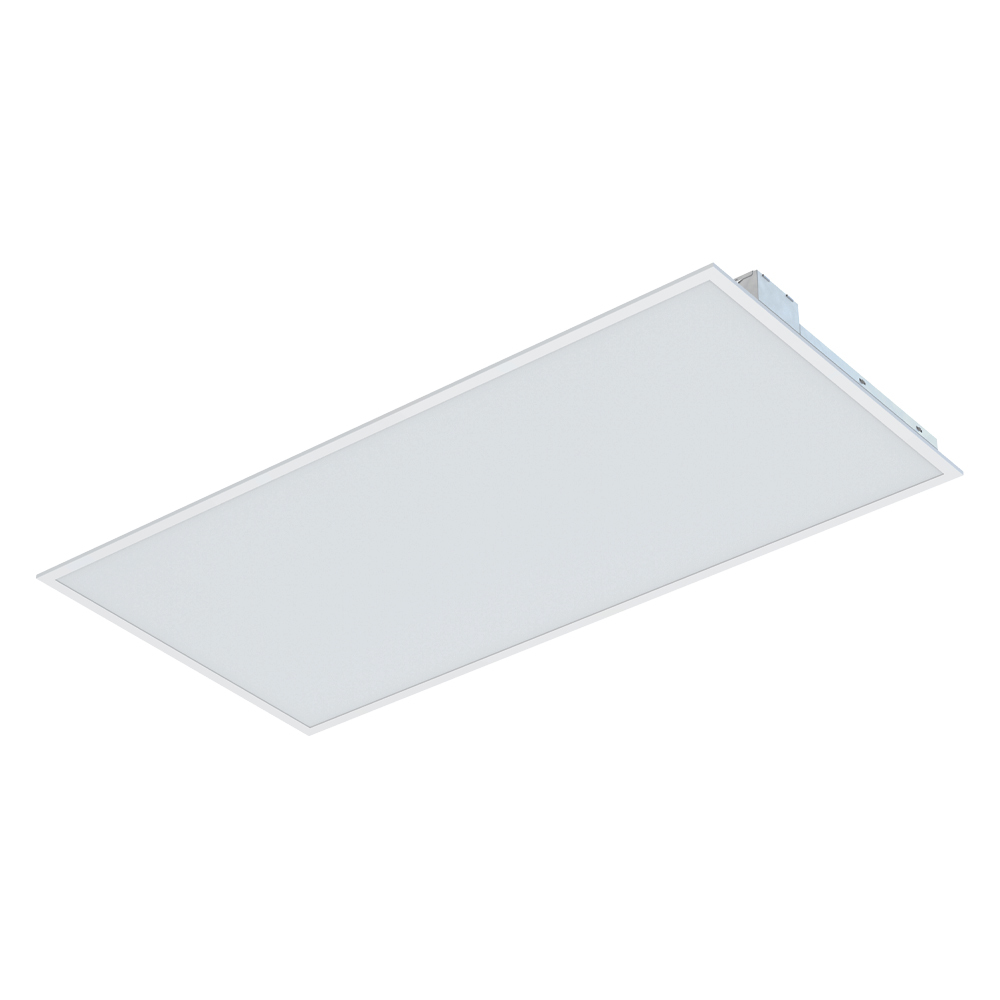

L-Grid ProMax Select
LED Recessed Flat Panel - Selectable CCT & Wattage
Introducing the L-Grid® ProMax Select LED flat panel (FTR4), the top choice for projects that require superior performance and reliability. This next-generation LED back-lit flat panel is designed with a thinner profile, a larger junction box, and enhanced efficacy. The L-Grid ProMax Select seamlessly integrates into any environment, delivering consistent, high-quality illumination. It’s the preferred flat panel for indoor lighting projects, offering unparalleled peace of mind thanks to the industry-leading Ten-Year Warranty.
Product Specs
Product Details
Key Features
-
Energy-efficient LED replacement for existing recessed fluorescent luminaires.
-
Select wattage and correlated color temperature (CCT) via a switch in the field.
-
Recessed or surface mounted with accessory.
Construction
-
Extruded aluminum frame with steel backing prevents light leak and is built for superior strength and durability.
-
Frosted white lens offers complete shielding and uniform light distribution that's glare-free.
-
Low-profile design provides flexibility for installing in low plenum areas (non-IC rated).
Electrical
-
120-277VAC 50/60Hz input.
-
Power Factor: >0.9; THD: <20%
-
0-10V dimming standard.
-
Operating temperature: -30°C to +45°C (-22°F to +113°F)
Optics
-
Uniform illumination with no visible bright spots or pixelation.
-
Industry-leading LEDs with selectable CCT: 3000K, 3500K, 4000K, 5000K, and 6500K (minimum 82 CRI).
-
Lumen Maintenance: 165,000 hours (L70)
Mounting
-
Integral T-bar clips included for mounting in a recessed ceiling application.
-
Flange kit accessory available (consult factory).
Warranty
-
Backed by US LED's industry-leading Ten-Year Warranty.
Stocked Configurations
FTR4 in-stock configurations are subject to change at any time. Please contact our customer service team for the most recent list of stocked configurations.
