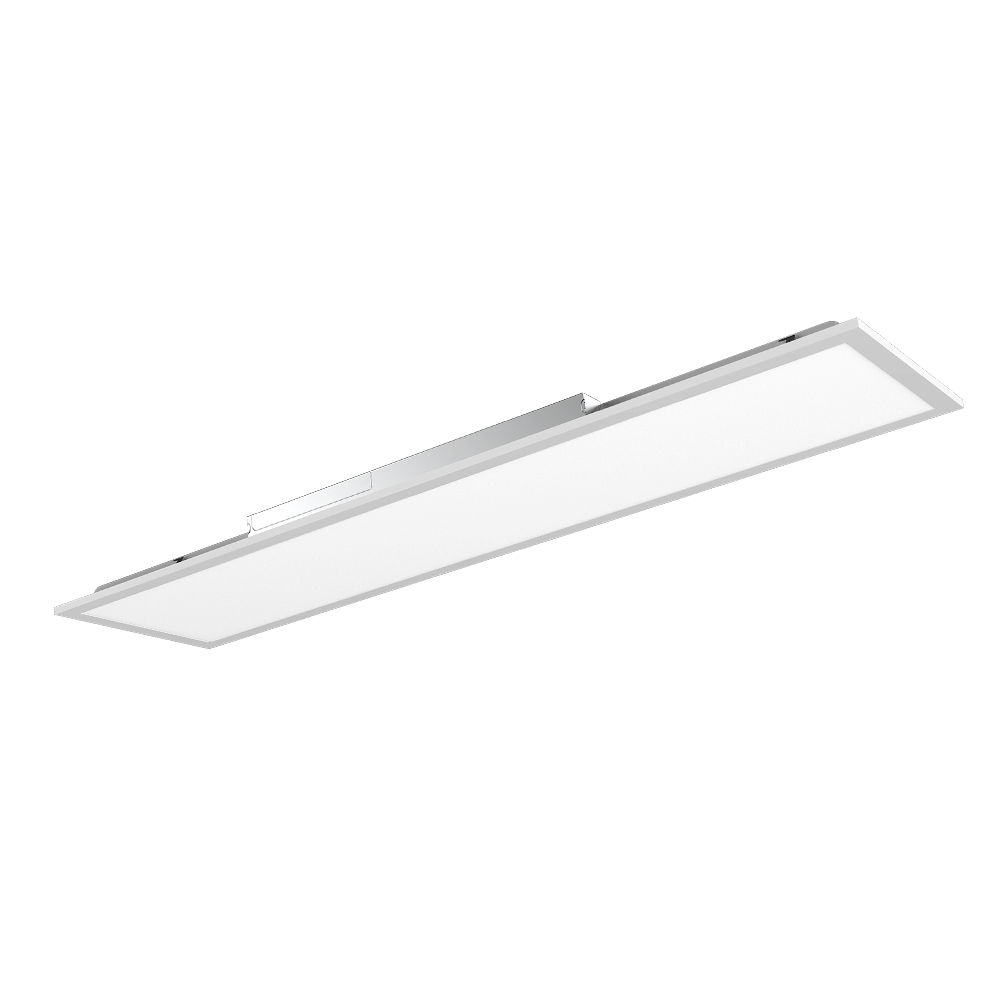

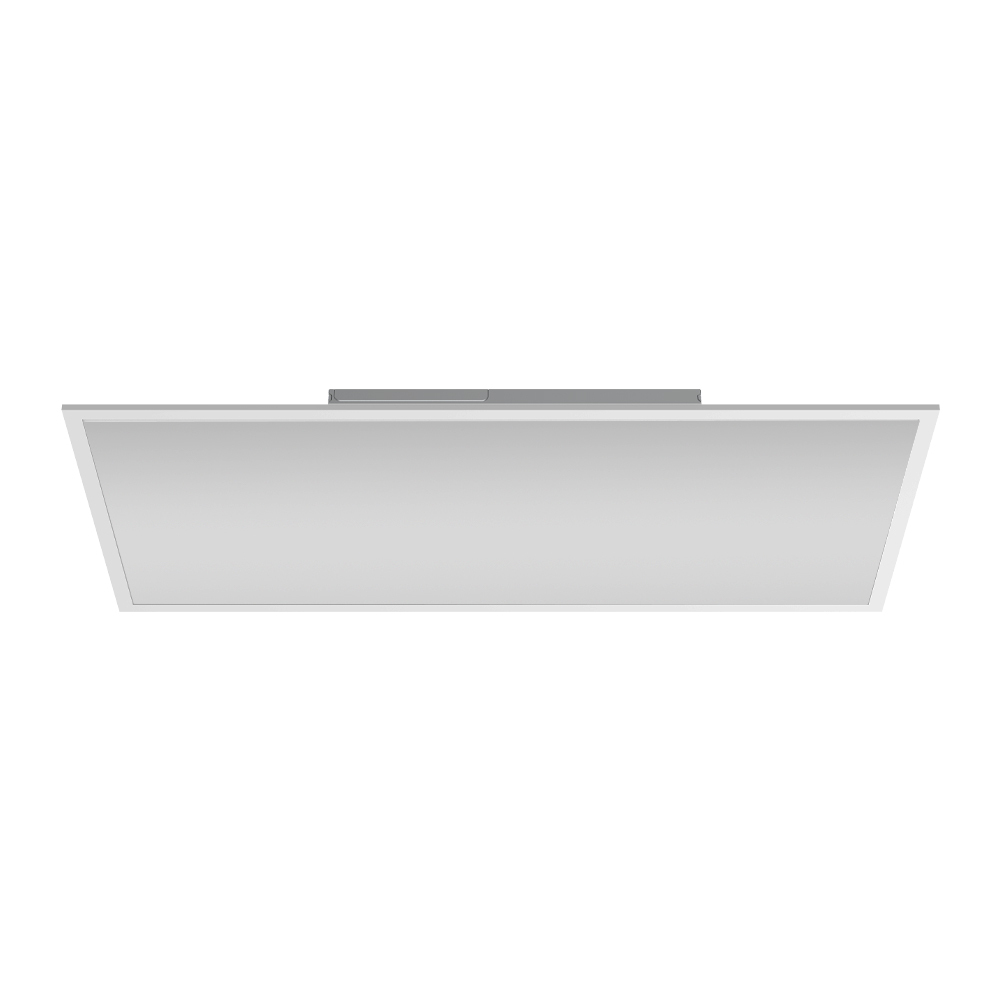

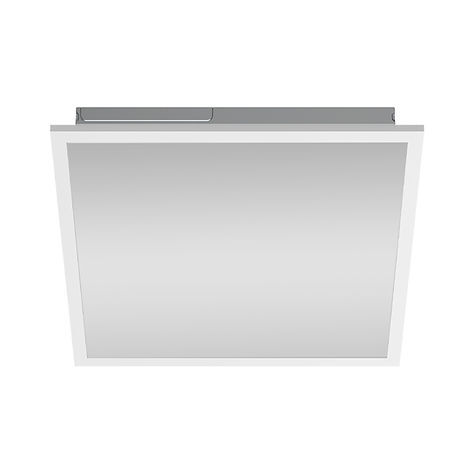

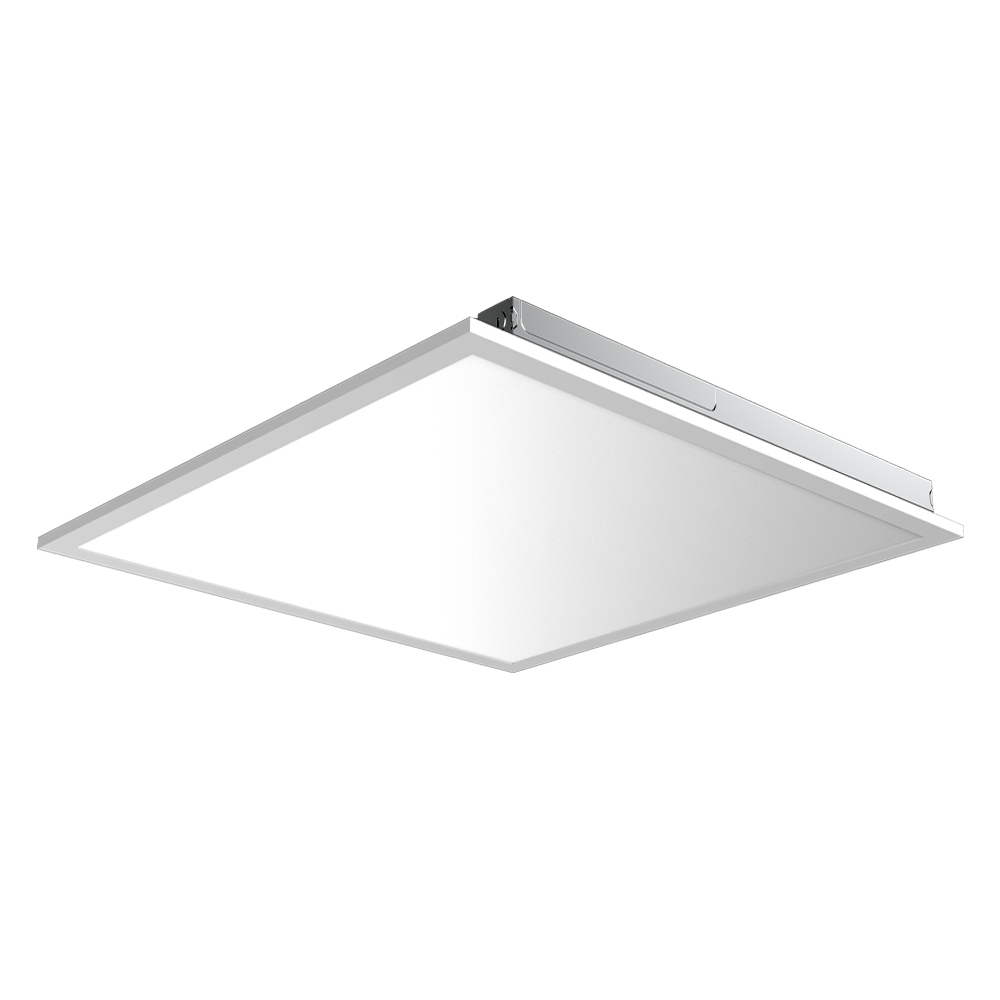

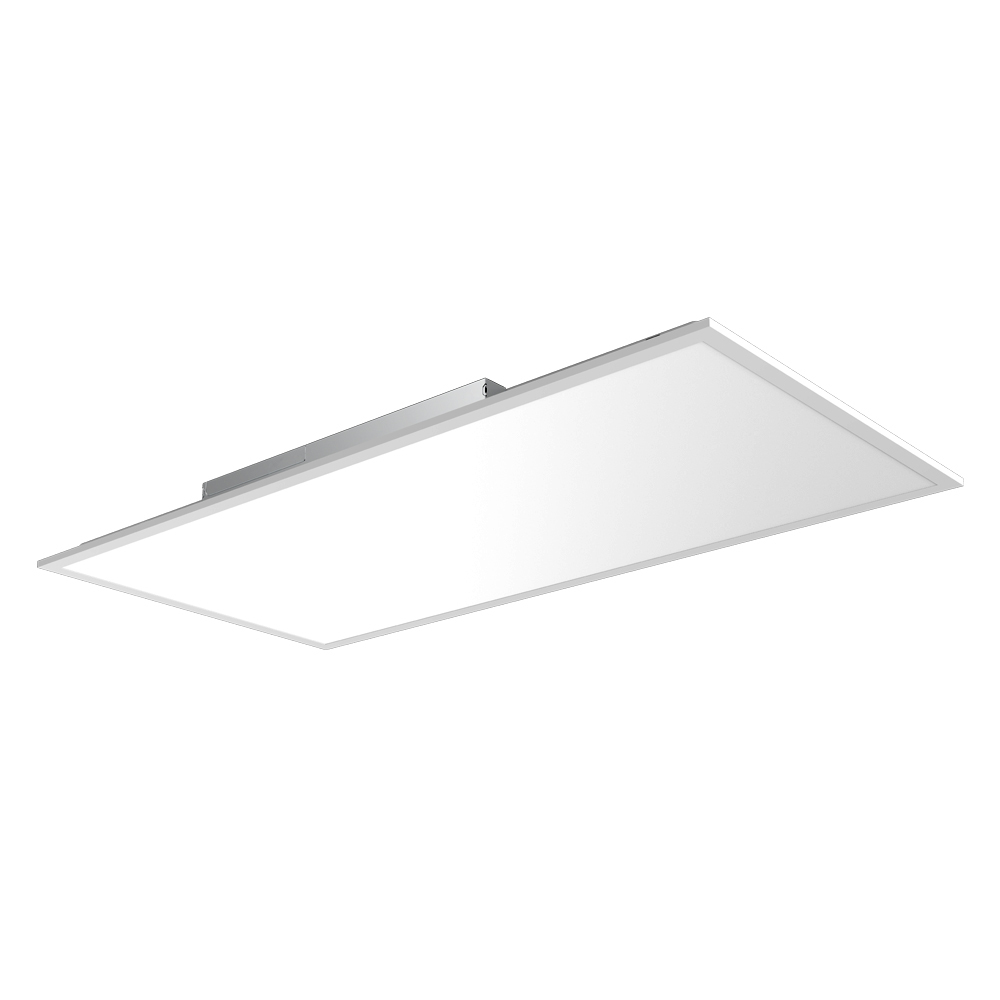

L-Grid Essential Select
LED Recessed Flat Panel - Selectable CCT & Wattage
The L-Grid® Essential Select (FTR5) is ideal for those seeking a cost-effective LED back-lit flat panel that delivers on performance without sacrificing quality. Designed to elevate every space with brilliant illumination, this modern flat panel boasts unparalleled flexibility for lighting projects of any scale. Experience the perfect blend of customizable options and uncompromising quality, providing an incredible lighting experience that offers selectable wattage and CCT for offices, hospitality, retail, and other commercial spaces.
Product Specs
Product Details
Key Features
-
Energy-efficient LED replacement for existing recessed fluorescent luminaires.
-
Select wattage and correlated color temperature (CCT) via a switch in the field.
-
Emergency battery back-up accessory available to integrate with the luminaire.
-
Additional mounting are accessories available.
Construction
-

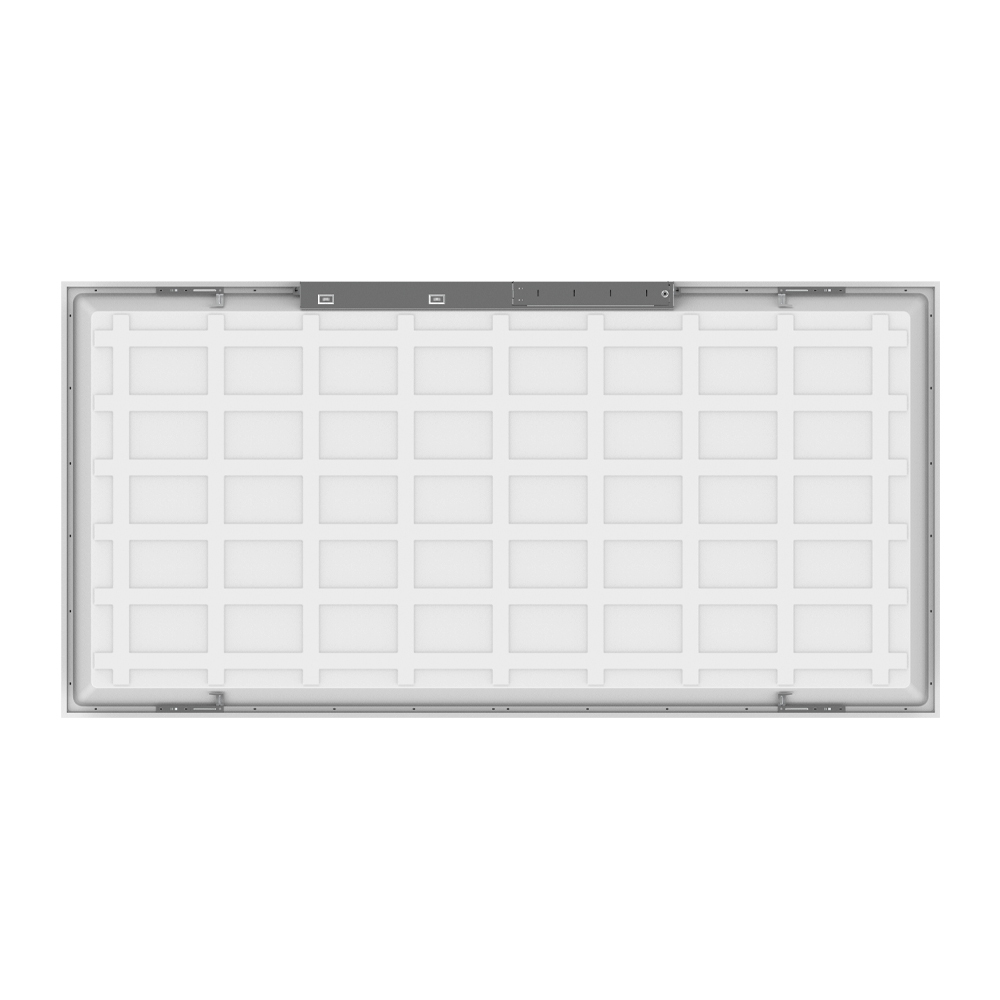

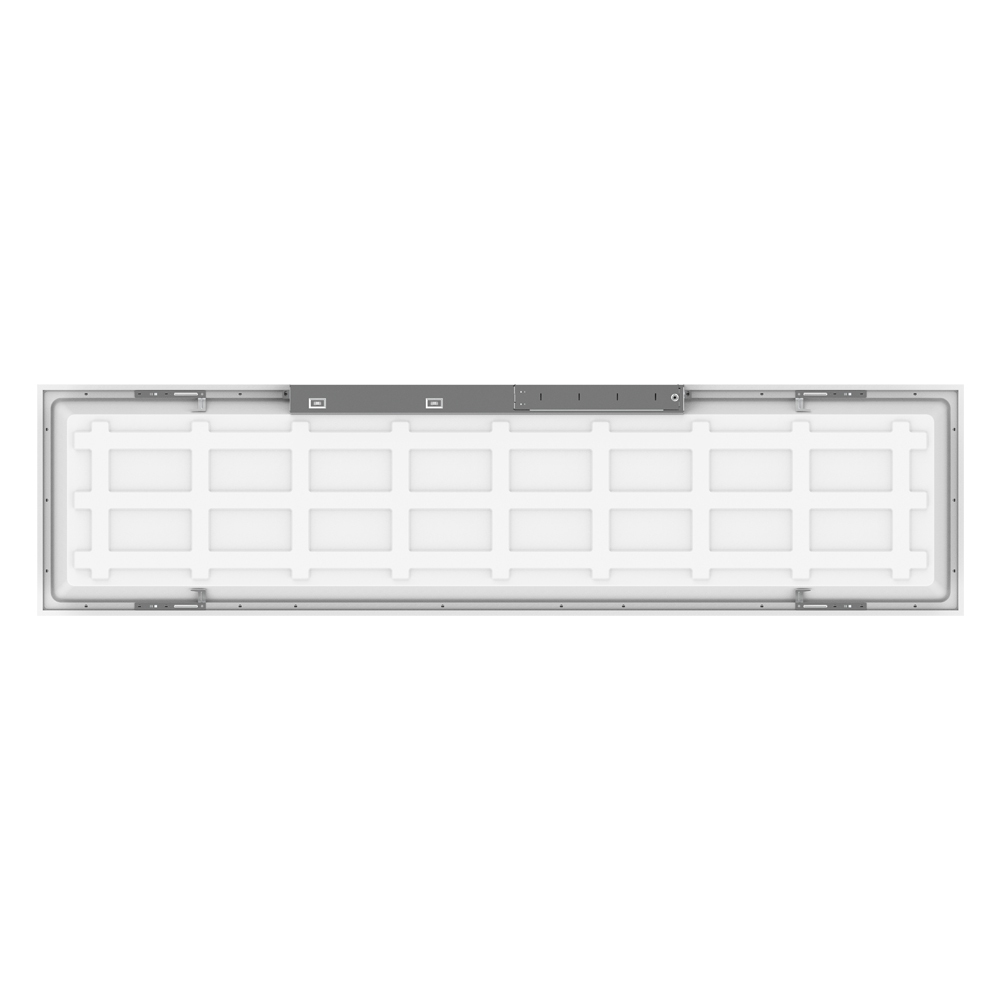

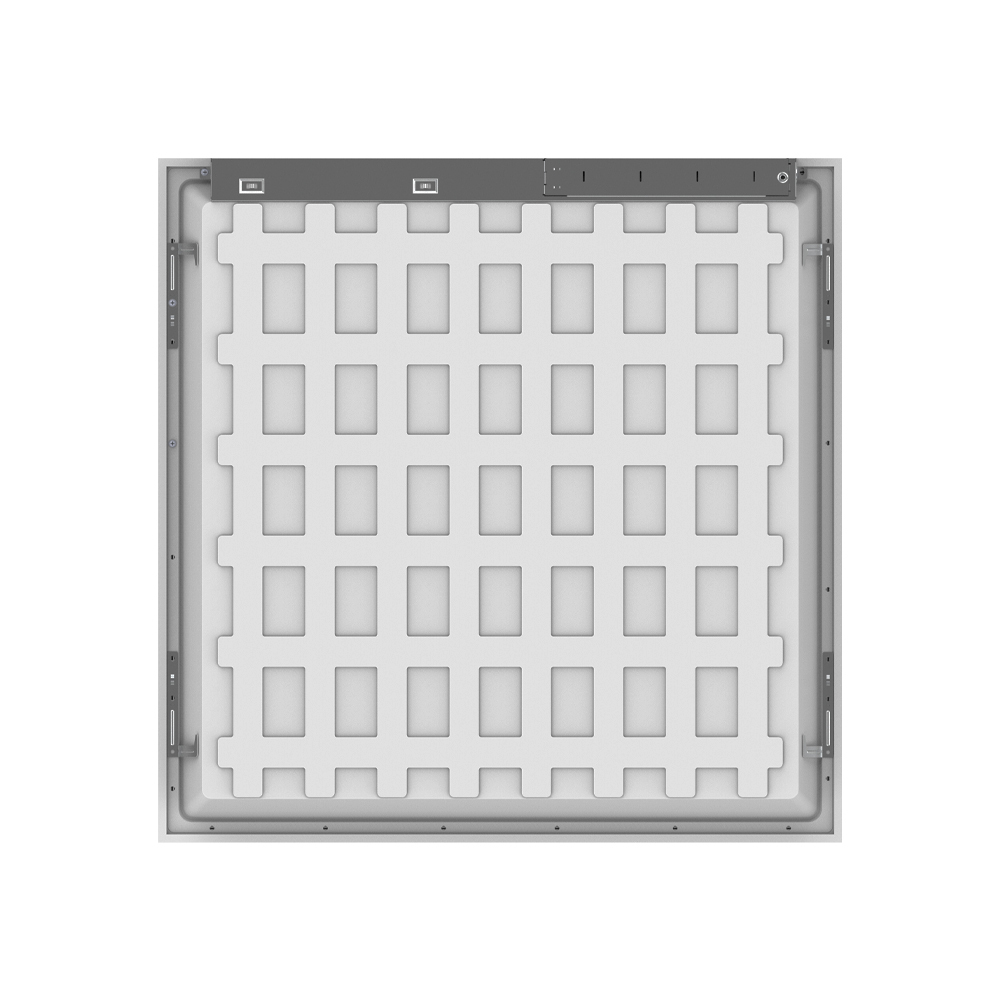

Extruded aluminum frame with steel backing prevents light leak and is built for superior strength and durability.
-
Frosted white lens offers complete shielding and uniform light distribution that's glare-free.
-
Low-profile design provides flexibility for installing in low plenum areas (IC rated).
Electrical
-
120-277VAC 50/60Hz input.
-
Power Factor: >0.9; THD: <20%
-
0-10V dimming standard.
-
Operating temperature: -17°C to 45°C (-1.4°F to 113°F)
Optics
-
Uniform illumination with no pixelation.
-
Industry-leading LEDs with selectable CCT via switch in the field: 3500K, 4000K, and 5000K CCT (minimum 82 CRI).
-
Lumen Maintenance: >50,000 hours (L70)
Mounting
-
Integral T-bar clips included for easy mounting in a recessed ceiling application.
Warranty
-
Backed by US LED's Five-Year Warranty.
Stocked Configurations
FTR5 in-stock configurations are subject to change at any time. Please contact our customer service team for the most recent list of stocked configurations.
