      CanopyStar XL

      LED Gas Canopy

      • UL Certified
      • DLC Listed
      • 10 Year Warranty
      • RoHS
      • Night Sky

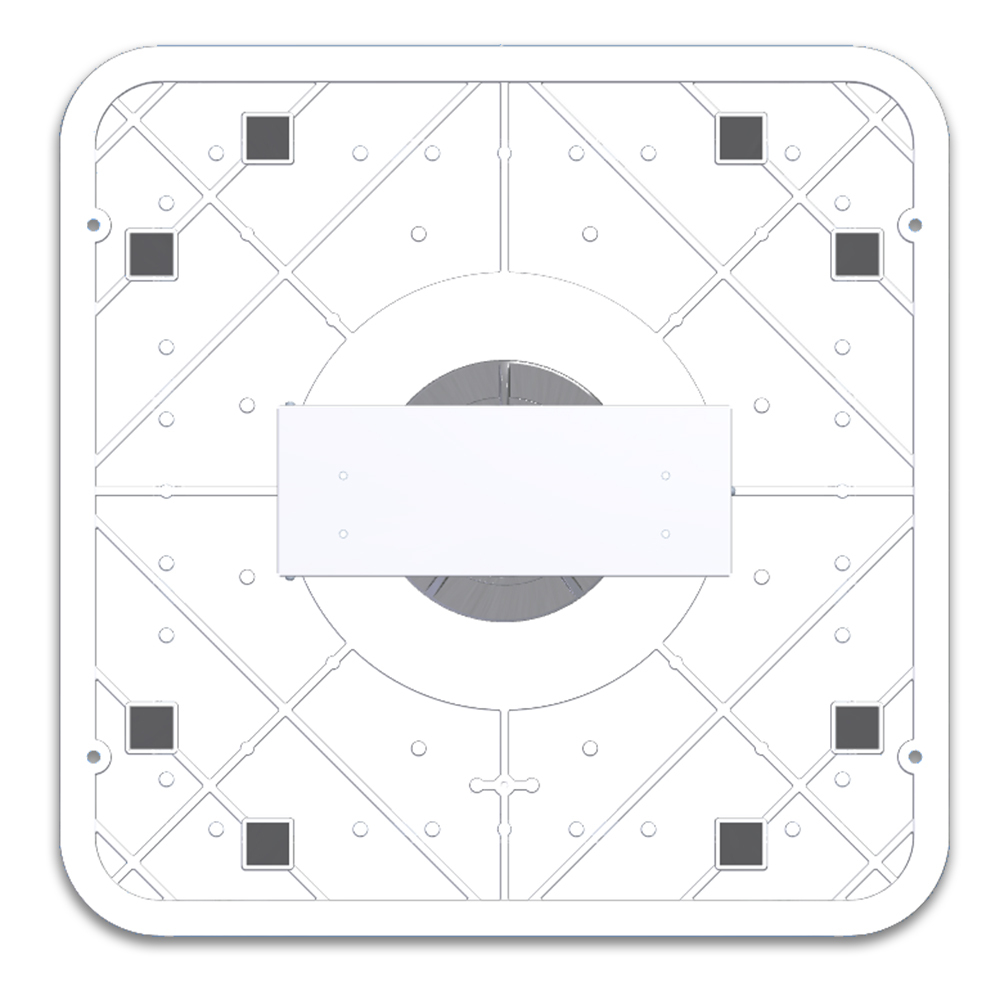

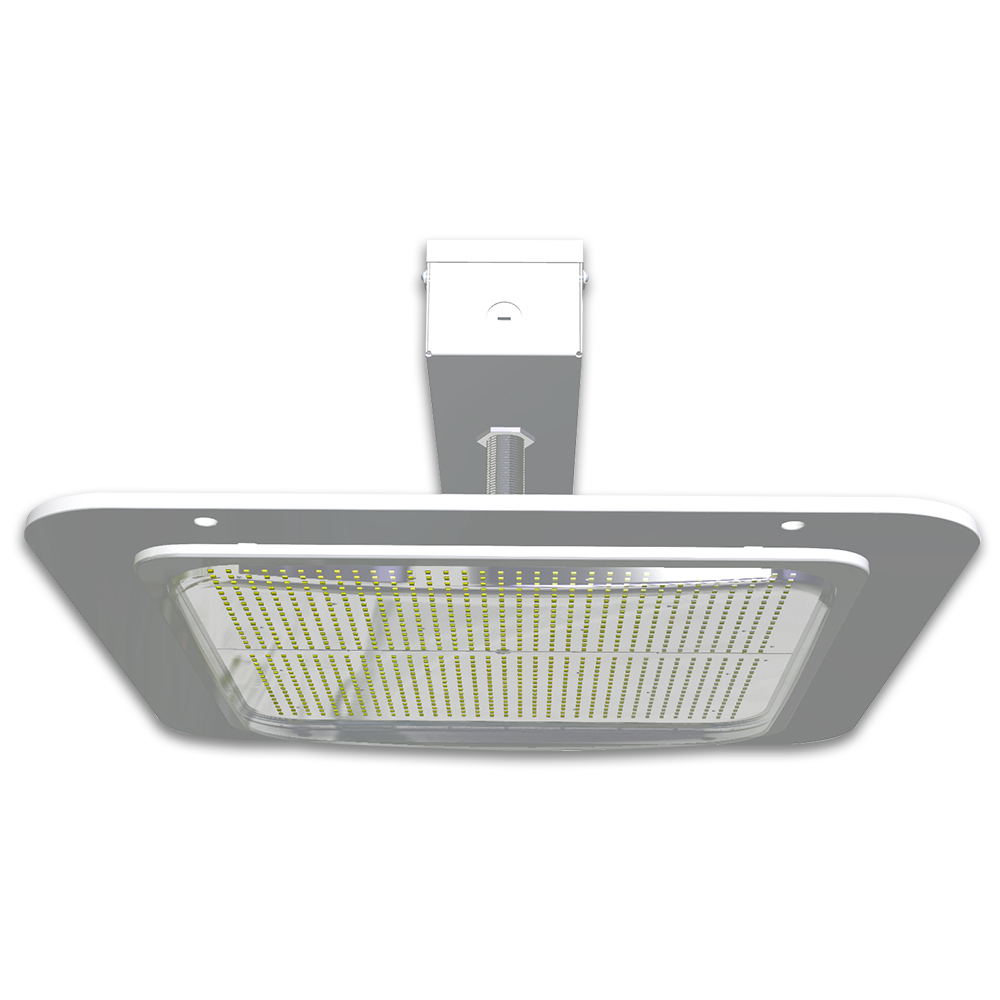

      CanopyStar XL (GCL1) is a low profile, energy-efficient LED canopy luminaire engineered for both new construction and retrofit projects. With easy installation in the field, it's the ideal LED canopy for gas stations, convenience stores, restaurant drive-thrus, and other exterior canopy applications. CanopyStar XL offers exceptional light distribution and uniform coverage thanks to its precision molded lens. The CanopyStar XL provides ultra-long life illumination for over 100,000 hours (L70) and is backed by US LED's Ten-Year Warranty.

      Data Sheet IES File Installation Guide

      Product Specs

      Color Temperatures:
      4000K, 5000K
      Max Lumens:
      22831
      Voltage:
      120-277V, 347-480V
      Wattage:
      70W, 150W, 130W
      Additional Options:
      Color Finishes

      Product Details

      Key Features

      • Low profile, energy-efficient LED canopy designed to accommodate a variety of applications and allow for easy installation.

      • Premium photometric performance that results in sites with excellent uniformity.

      • Modern aesthetics that easily integrate with any existing architecture.

      • Easy installation and field serviceable.

      • RoHS compliant; Mercury and UV free.

      Construction

      • Robust die-cast aluminum housing protects integral components from harsh environments and optimizes thermal management.

      • Housing is protected by a standard corrosion- resistant white powder coat finish.

      • IP65 rated enclosure prevents intrusion from environmental elements that could degrade performance.

      • UV-stabilized polycarbonate lens is heat resistant and won't degrade over time.

      Electrical

      • 120-277VAC or 277-480VAC input.

      • 0-10V dimming standard.

      • Power factor: >0.90 and THD <20%.

      • Operating temperature: -30°C to 45°C (-22°F to 113°F).

      Optics

      • Precision molded lens offers IES Type VS symmetrical distribution of uniform lighting.

      • High-efficacy LEDs with 4000K and 5000K CCT (minimum 80 CRI).

      • Lumen Maintenance: 163,000 hours (L70).

      Mounting

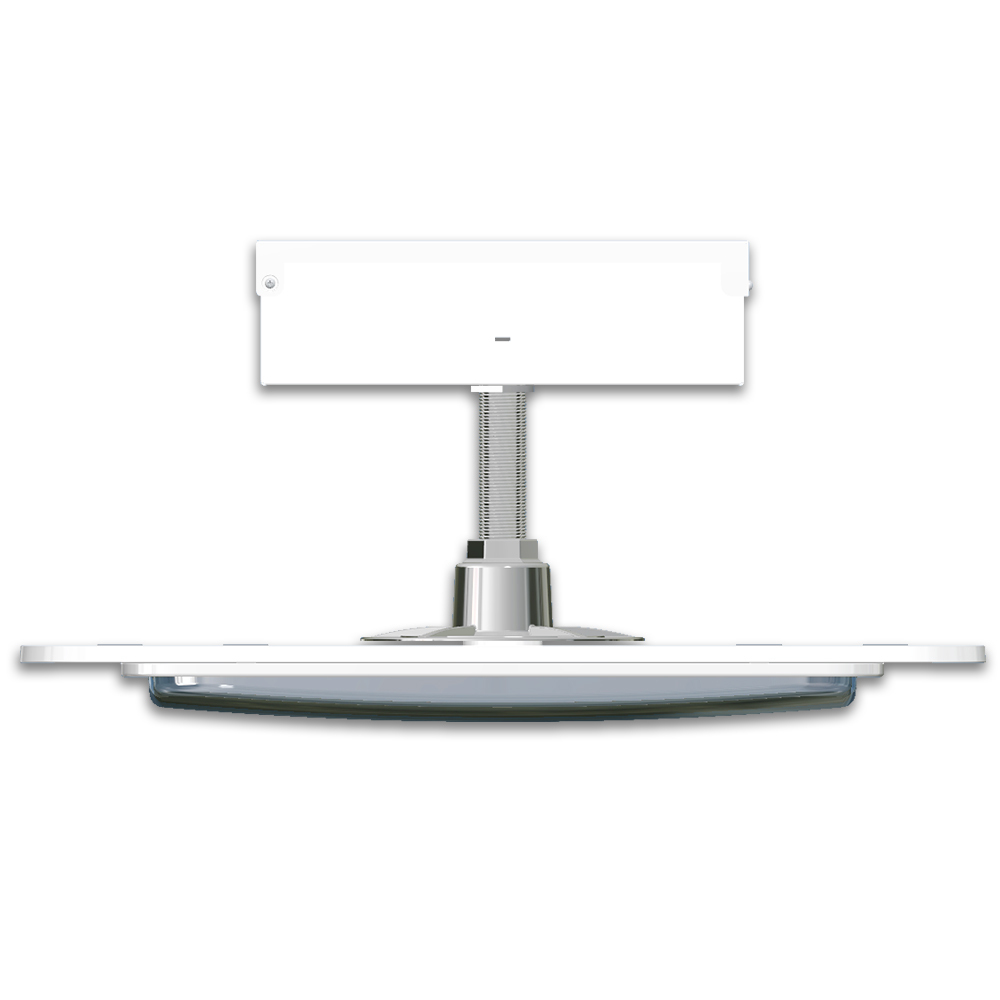

      • Direct surface mount to the canopy or recessed J-Box with additional hardware.

      Warranty

      • Backed by US LED's industry-leading Ten-Year Warranty.

      Stocked Configurations

      GCL1 in-stock configurations are subject to change at any time. Please contact customer service for the most recent list of stocked configurations.
